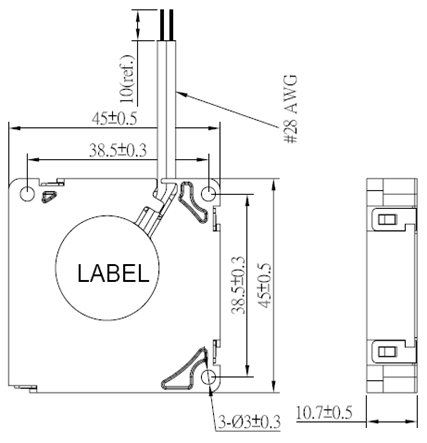

Series:45×45×10MM
-
Material:Impeller Plastlc (UL：94V-0)Frame Aluminum Alloy
-
Bearing Type:Two ball bearing
-
Protection:Auto-Restart /Impedance
-
Rated Voltage:12V
-
Operating Temp:~10~70℃
-
Weight:30g
Blower Fan 4510mm
基本信息
图片展示
型号
| Model | Rated Voltage (V) | Operating Voltage Range(V) | Rated Current (Amp) | Rated Input Power(W) | Rated Speed (rpm) | Air Flow | Static Pressure (mmH2O) | Sound level dB(A) | |
|---|---|---|---|---|---|---|---|---|---|
| (CFM) | m3/min | ||||||||
| XHB045101BL-PF000 | 12 | 7~13.2 | 0.05 | 0.60 | 4100 | 1.91 | 0.05 | 4.39 | 24.4 |
| XHB045101BL-PF000 | 12 | 7~13.2 | 0.11 | 1.32 | 6500 | 2.95 | 0.08 | 11.04 | 36.8 |
| XHB045101BL-PF000 | 12 | 7~13.2 | 0.20 | 2.40 | 8200 | 3.67 | 0.10 | 20.61 | 43.3 |
NOTES:"X"="B"
*Sound level measured at the distance of one meter from the axis of intake.
*Specifications are subject change without notice.
