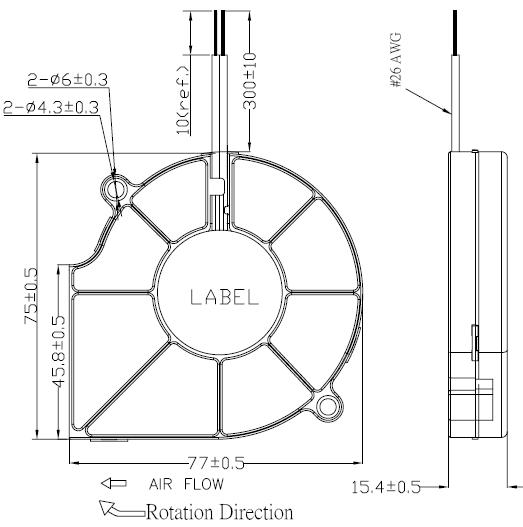

Series:70×70×15MM
-
Material:Housing Plastic (UL: 94V-0)
Impeller Plastlc (UL: 94V-0)
-
Bearing Type:Two ball bearing
-
Protection:Auto-Restart /Impedance
-
Rated Voltage:12V
-
Operating Temp:~10~70℃
-
Weight:85g
7515
基本信息
图片展示
型号
| Model | Rated Voltage (V) | Operating Voltage Range(V) | Rated Current (Amp) | Rated Input Power(W) | Rated Speed (rpm) | Air Flow | Static Pressure (mmH2O) | Sound level dB(A) | |
|---|---|---|---|---|---|---|---|---|---|
| (CFM) | m3/min | ||||||||
| XHB075151BL | 12 | 7~13.2 | 0.23 | 2.76 | 4000 | 8.60 | 0.24 | 17.29 | 47.0 |
| XHB075151BL | 12 | 7~13.2 | 0.35 | 4.20 | 4500 | 9.59 | 0.27 | 22.53 | 50.6 |
| XHB075151BL | 12 | 7~13.2 | 0.40 | 4.80 | 5000 | 10.66 | 0.30 | 27.82 | 53.2 |
| XHB075151BL | 12 | 7~13.2 | 0.58 | 6.96 | 5500 | 11.80 | 0.33 | 35.69 | 56.5 |
NOTES:"X"="B"
*Sound level measured at the distance of one meter from the axis of intake.
*Specifications are subject change without notice.
