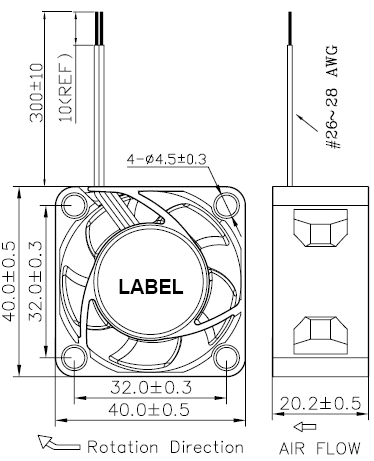

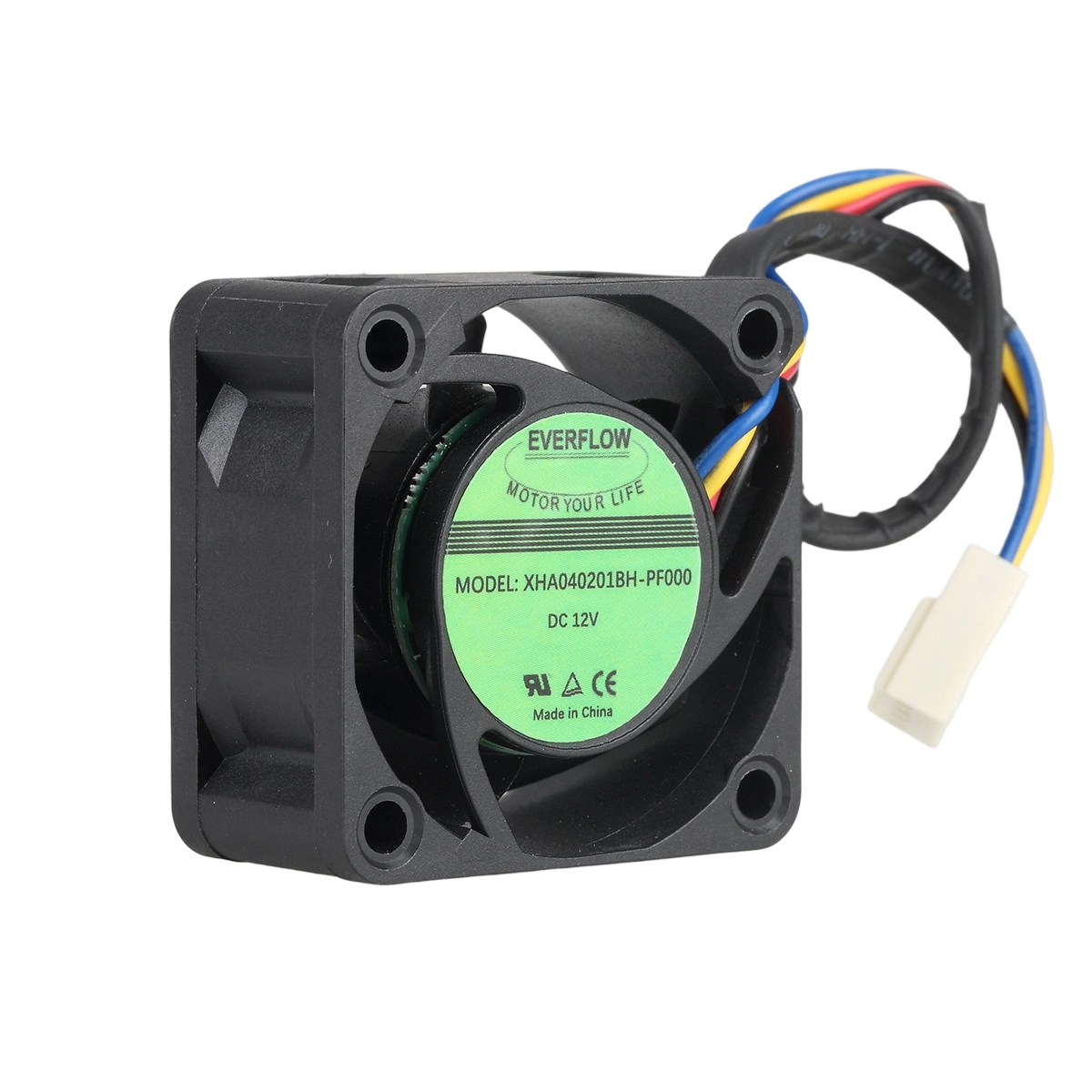

Series:40×40×20MM
-
Material:Housing Plastic (UL: 94V-0)
Impeller Plastlc (UL: 94V-0)
-
Bearing Type:Two ball bearing
-
Protection:Auto-Restart /Impedance
-
Rated Voltage:12V
-
Operating Temp:~10~70℃
-
Weight:30g
4020
基本信息

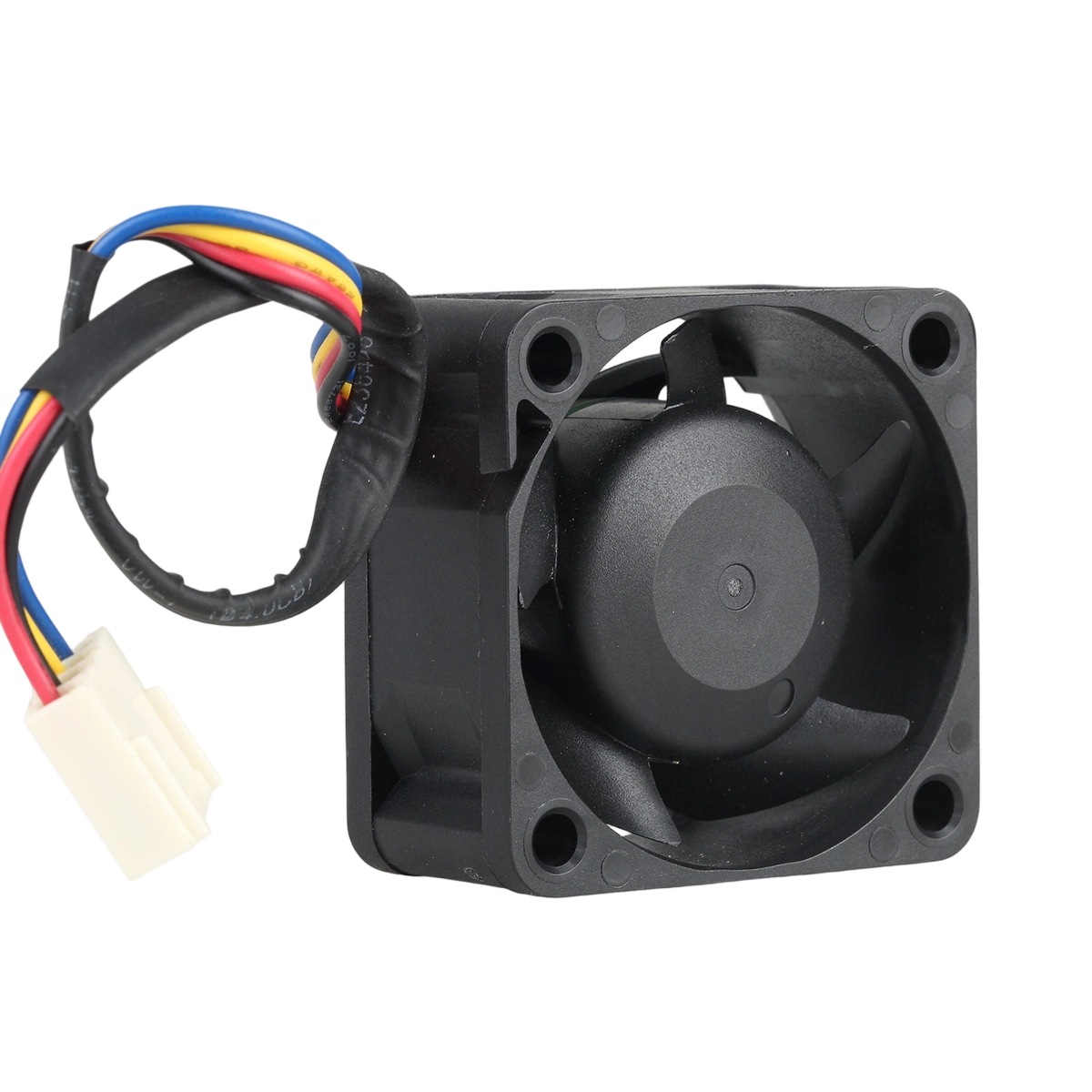

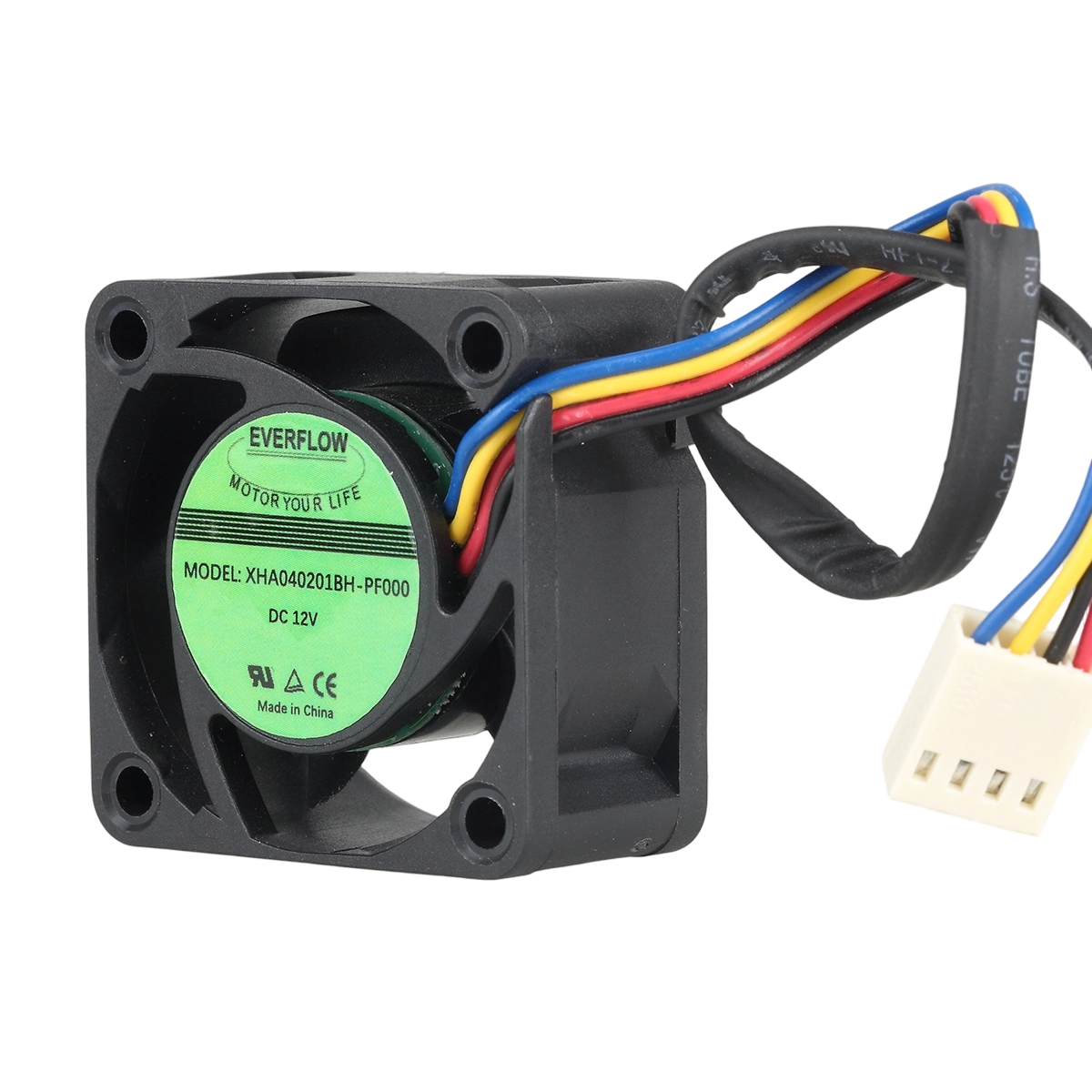

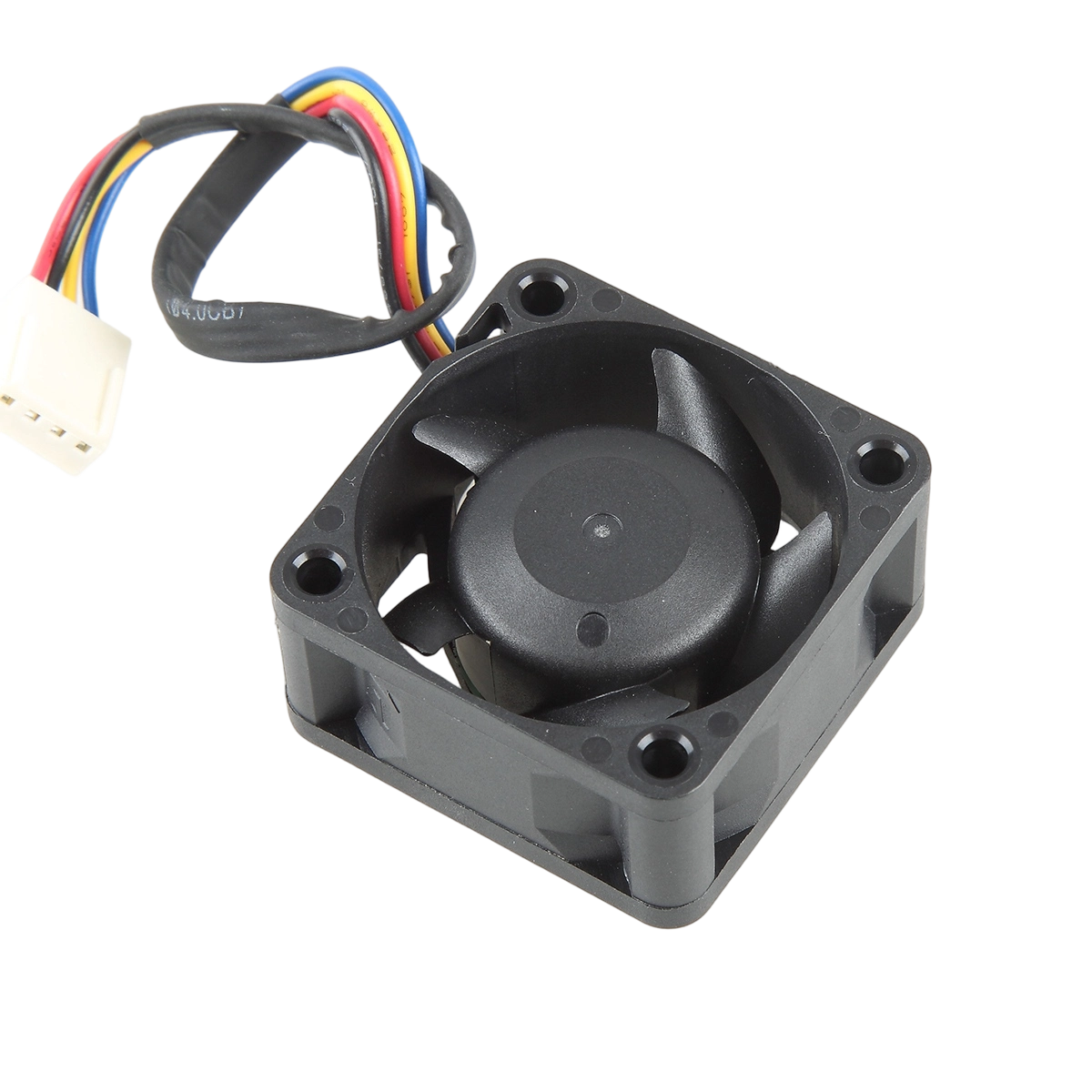

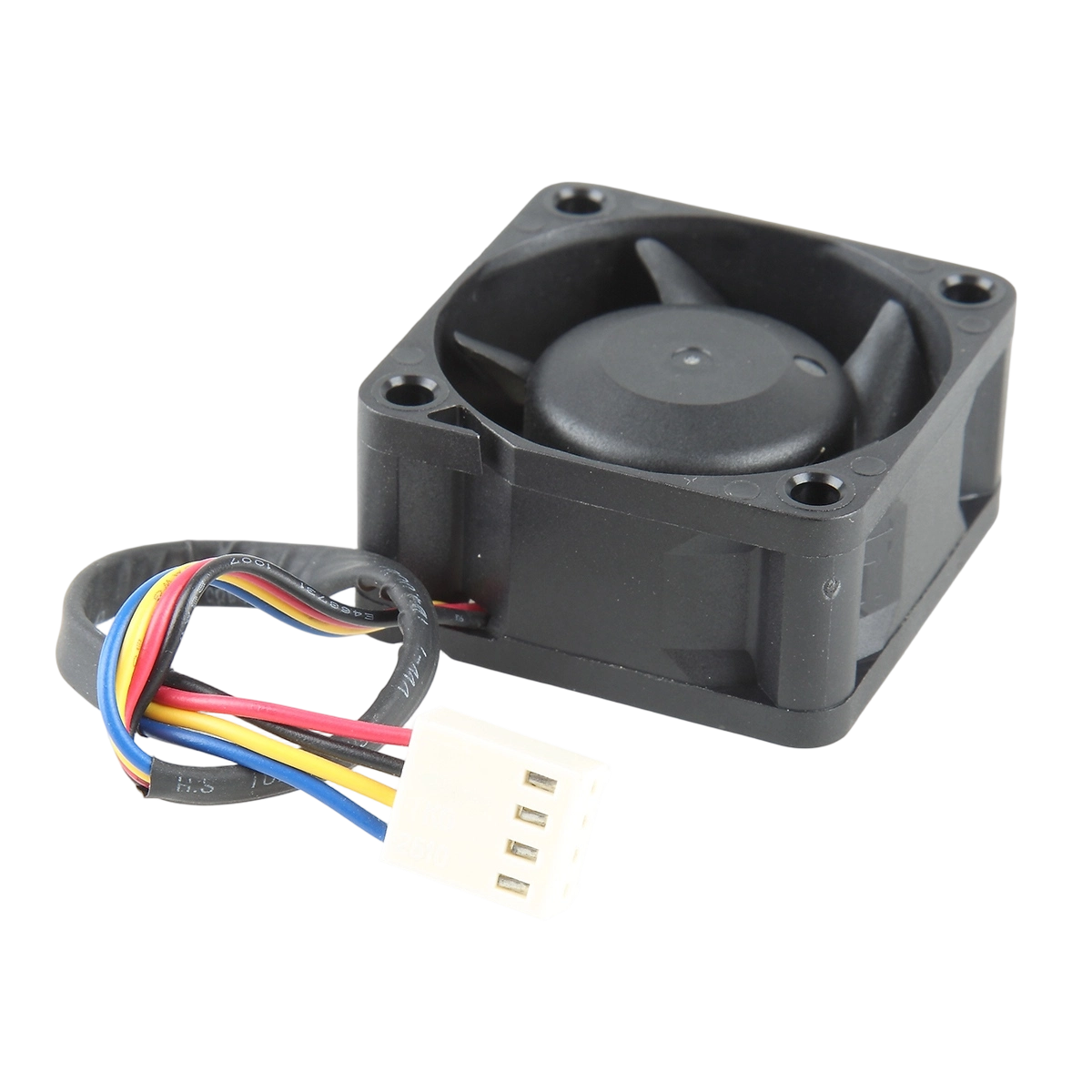

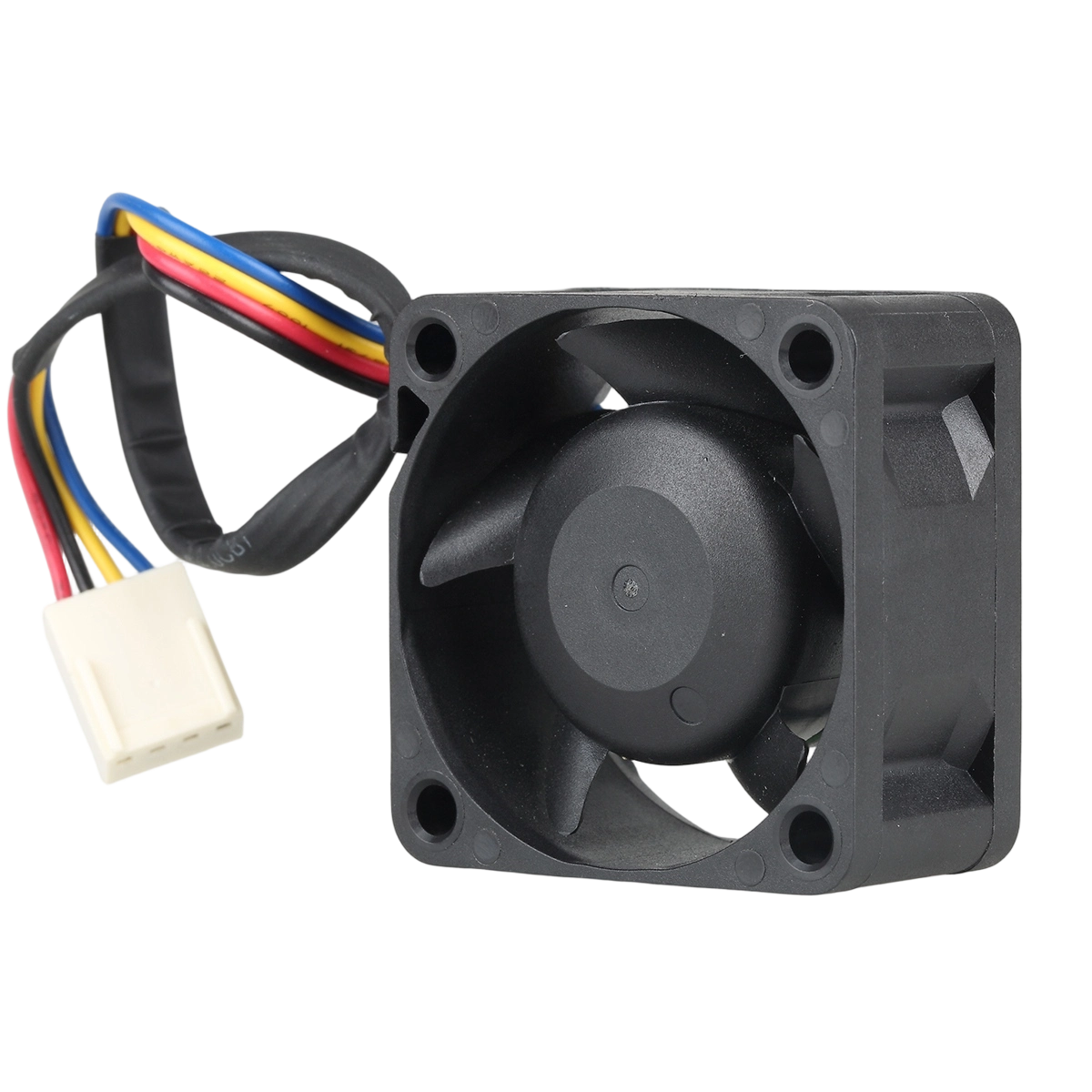

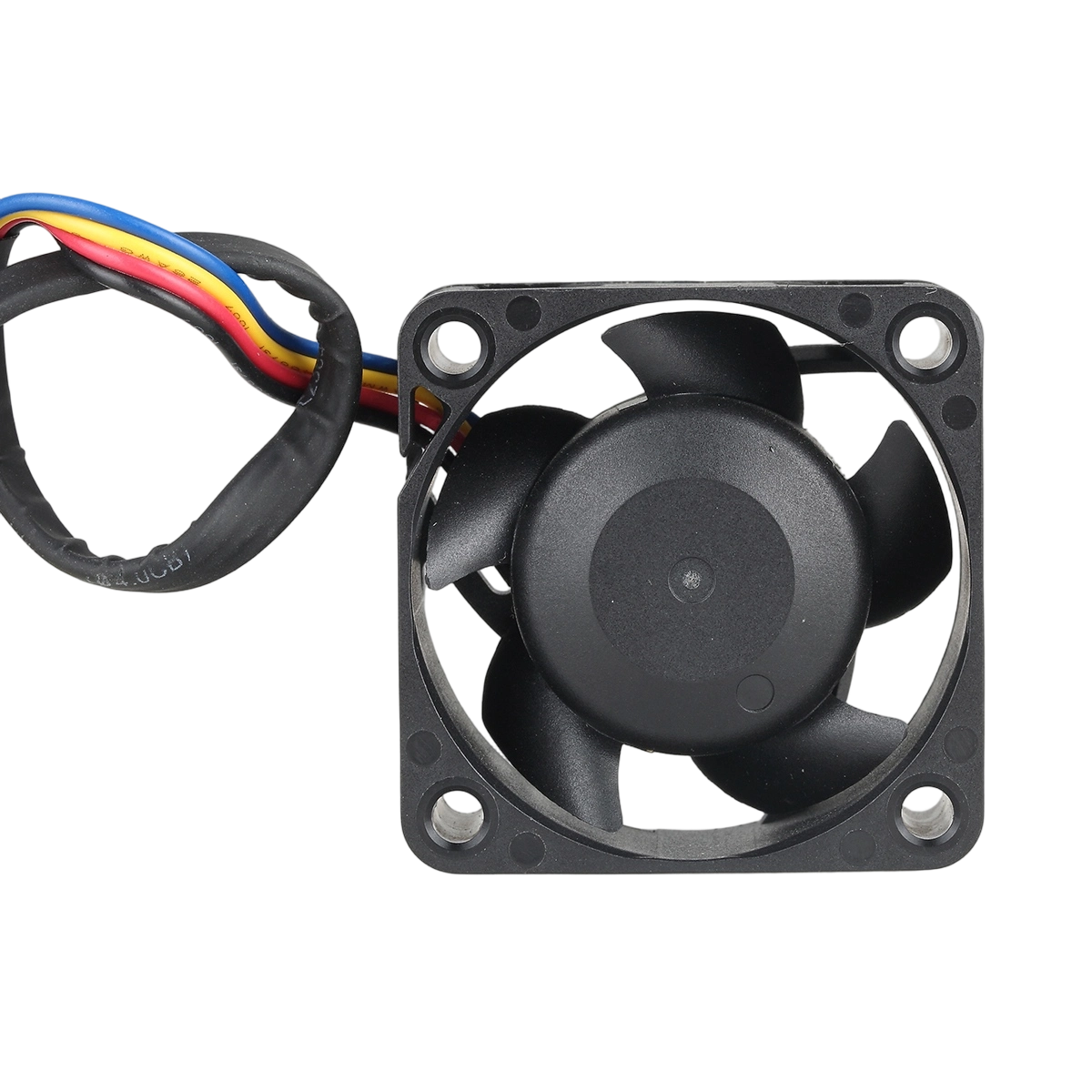

图片展示
型号
| Model | Rated Voltage (V) | Operating Voltage Range(V) | Rated Current (Amp) | Rated Input Power(W) | Rated Speed (rpm) | Air Flow | Static Pressure (mmH2O) | Sound level dB(A) | |
|---|---|---|---|---|---|---|---|---|---|
| (CFM) | m3/min | ||||||||
| XHA040201BH | 12 | 11.0~13.2 | 0.12 | 1.44 | 10000 | 10.85 | 0.31 | 12.59 | 40 |
| XHA040201BH | 12 | 8.0~13.2 | 0.28 | 3.36 | 15000 | 16.41 | 0.46 | 28.07 | 47.0 |
| XHA040201BH | 12 | 7~13.2 | 0.50 | 6.00 | 18000 | 20.17 | 0.57 | 41.25 | 51.5 |
| XHA040201BH | 12 | 7~13.2 | 0.95 | 9.60 | 20000 | 22.57 | 0.64 | 50.12 | 54.5 |
NOTES:"X"="B"
*Sound level measured at the distance of one meter from the axis of intake.
*Specifications are subject change without notice.
