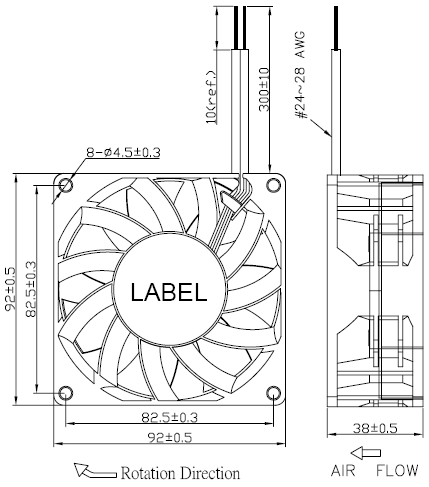

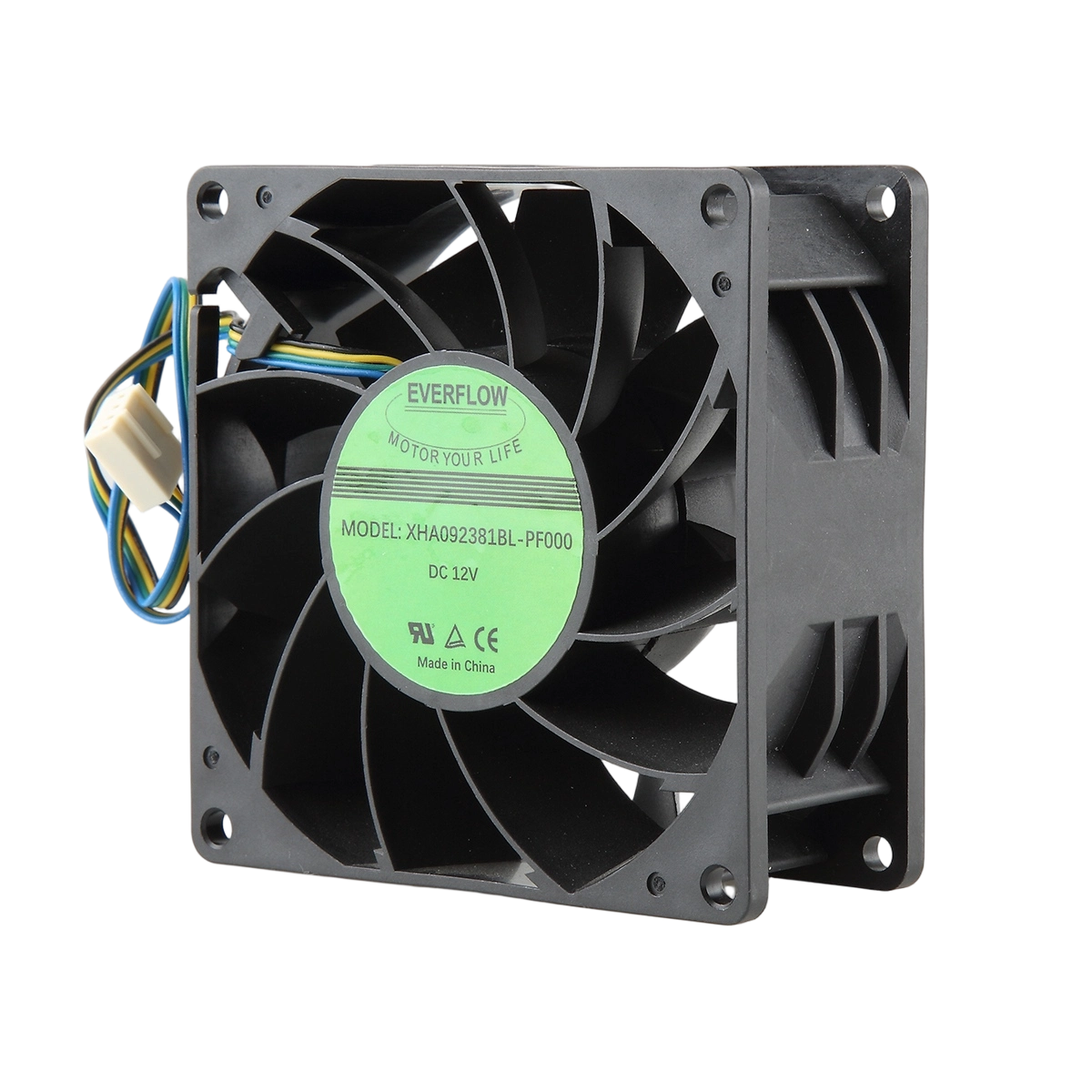

Series:90×90×38MM
-
Material:Housing Plastic (UL: 94V-0)
Impeller Plastlc (UL: 94V-0)
-
Bearing Type:Two ball bearing/Impedance
-
Protection:Auto-Restart
-
Rated Voltage:12V/24V
-
Operating Temp:~10~70℃
-
Weight:115g
9238
基本信息
图片展示
型号
| Model | Rated Voltage (V) | Operating Voltage Range(V) | Rated Current (Amp) | Rated Input Power(W) | Rated Speed (rpm) | Air Flow | Static Pressure (mmH2O) | Sound level dB(A) | |
|---|---|---|---|---|---|---|---|---|---|
| (CFM) | m3/min | ||||||||
| XHA092381BL | 12 | 7~13.2 | 0.50 | 6.00 | 3200 | 66.04 | 1.87 | 7.53 | 46.0 |
| XHA092381BL | 12 | 7~13.2 | 0.70 | 8.40 | 3600 | 74.81 | 2.12 | 9.42 | 50.0 |
| XHA092381BL | 12 | 7~13.2 | 0.80 | 9.60 | 4200 | 88.13 | 2.50 | 12.90 | 53.2 |
| XHA092381BL | 12 | 7~13.2 | 1.20 | 14.40 | 4800 | 101.05 | 2.86 | 16.73 | 56.2 |
NOTES:"X"="B"
*Sound level measured at the distance of one meter from the axis of intake.
*Specifications are subject change without notice.
