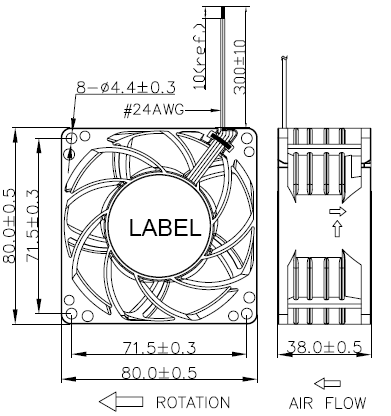

Series:80×80×38MM
-
Material:Housing Plastic (UL: 94V-0)
Impeller Plastlc (UL: 94V-0)
-
Bearing Type:Two ball bearing
-
Protection:Auto-Restart
-
Rated Voltage:12V/48V
-
Operating Temp:~10~70℃
-
Weight:197g
轴流风扇 8038 系列
基本信息

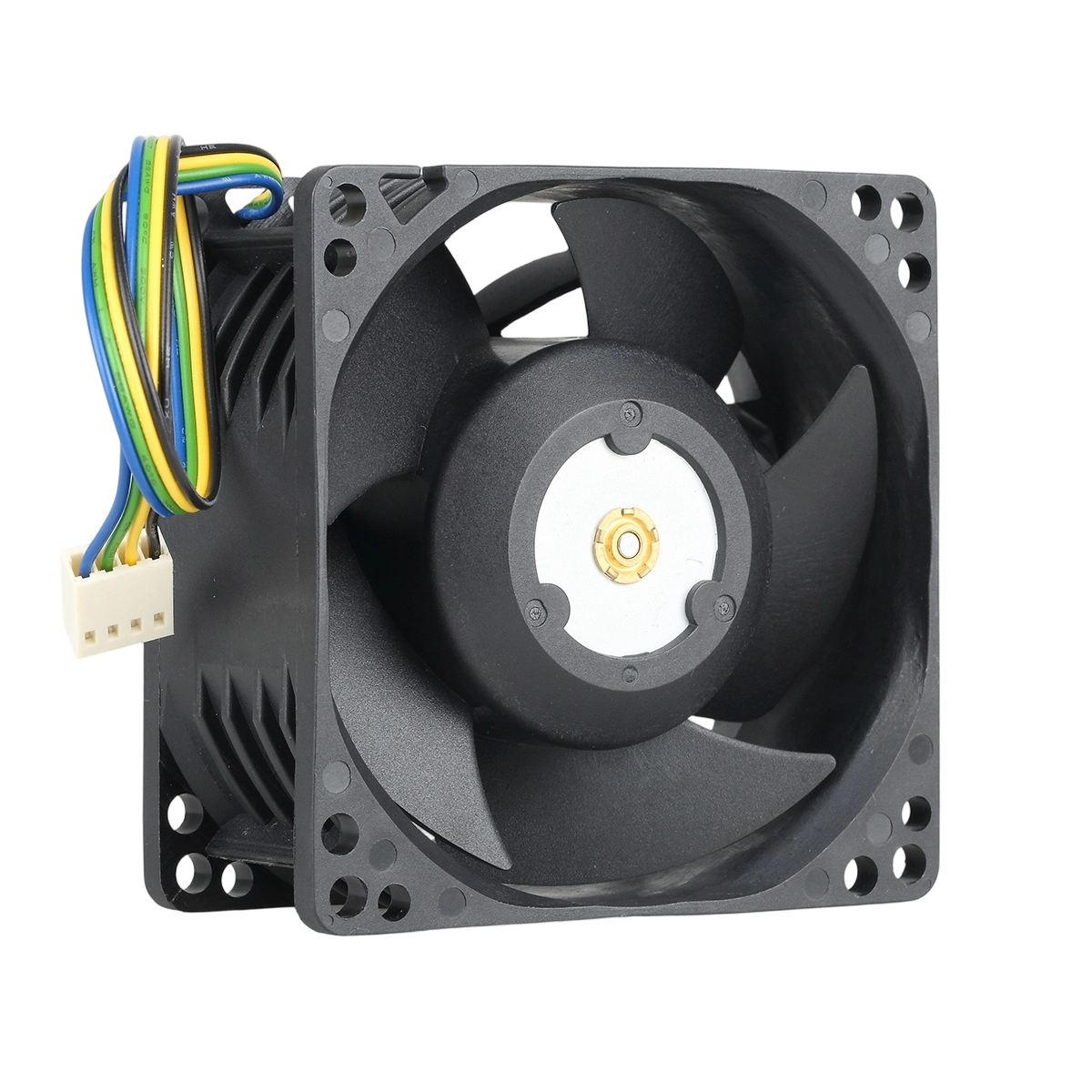

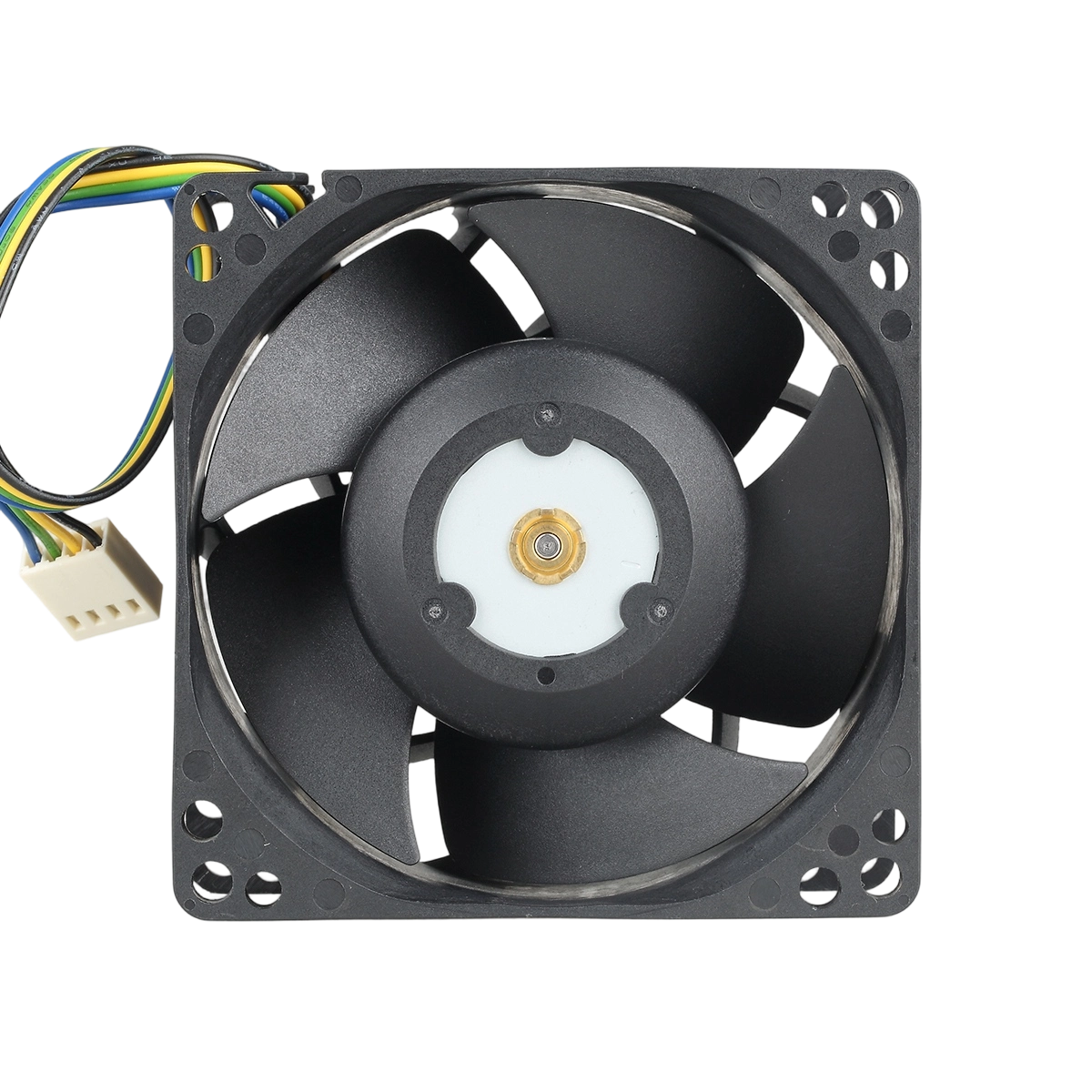

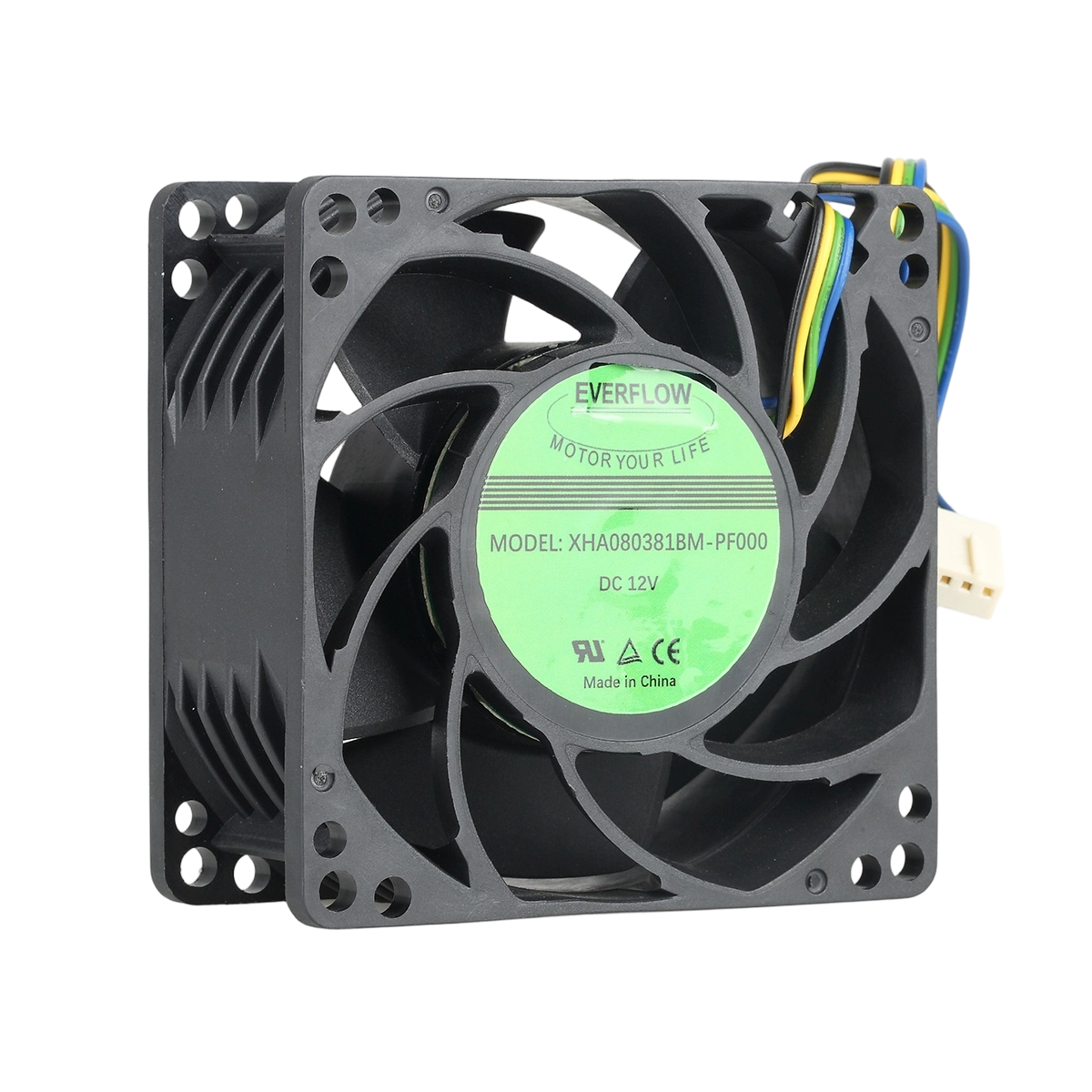

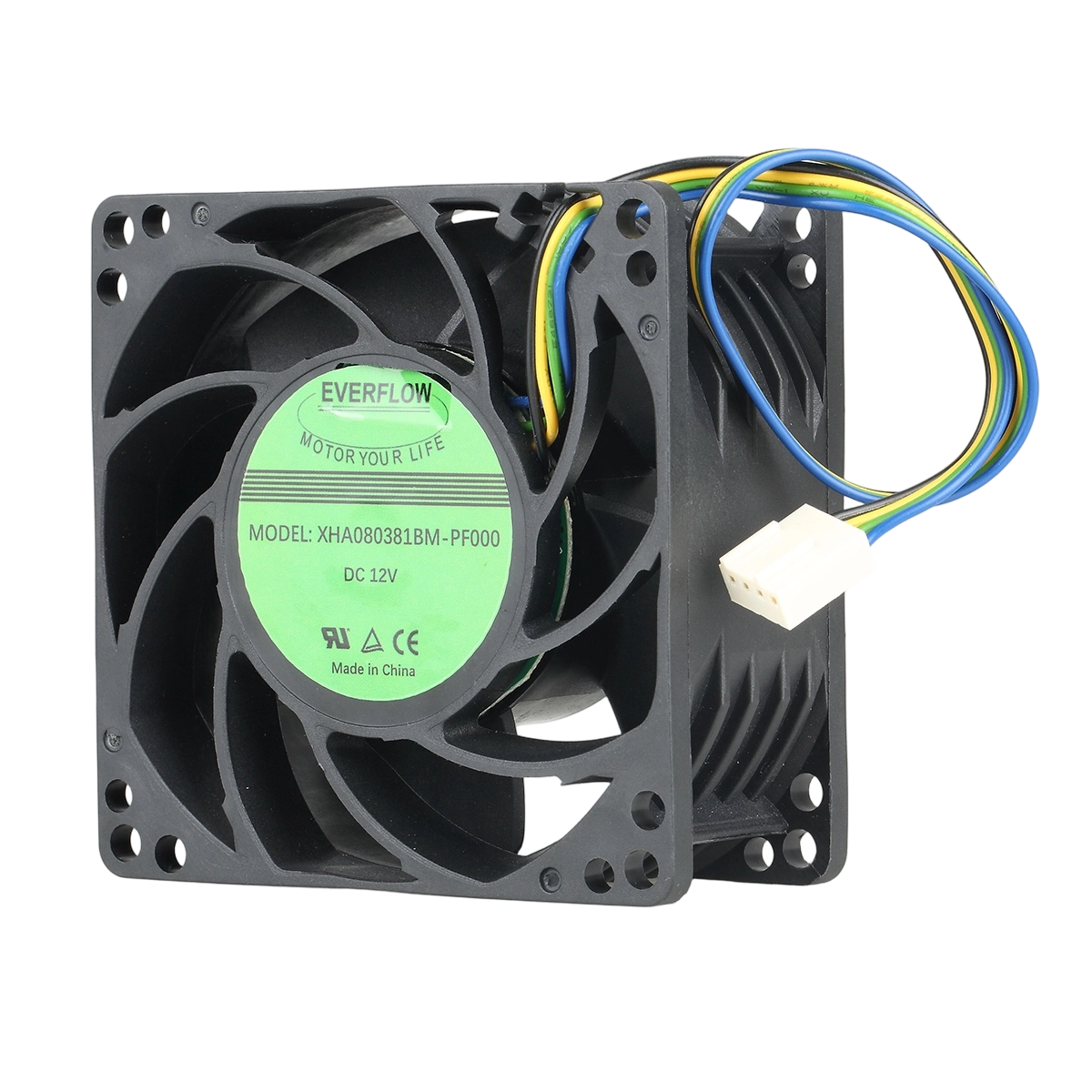

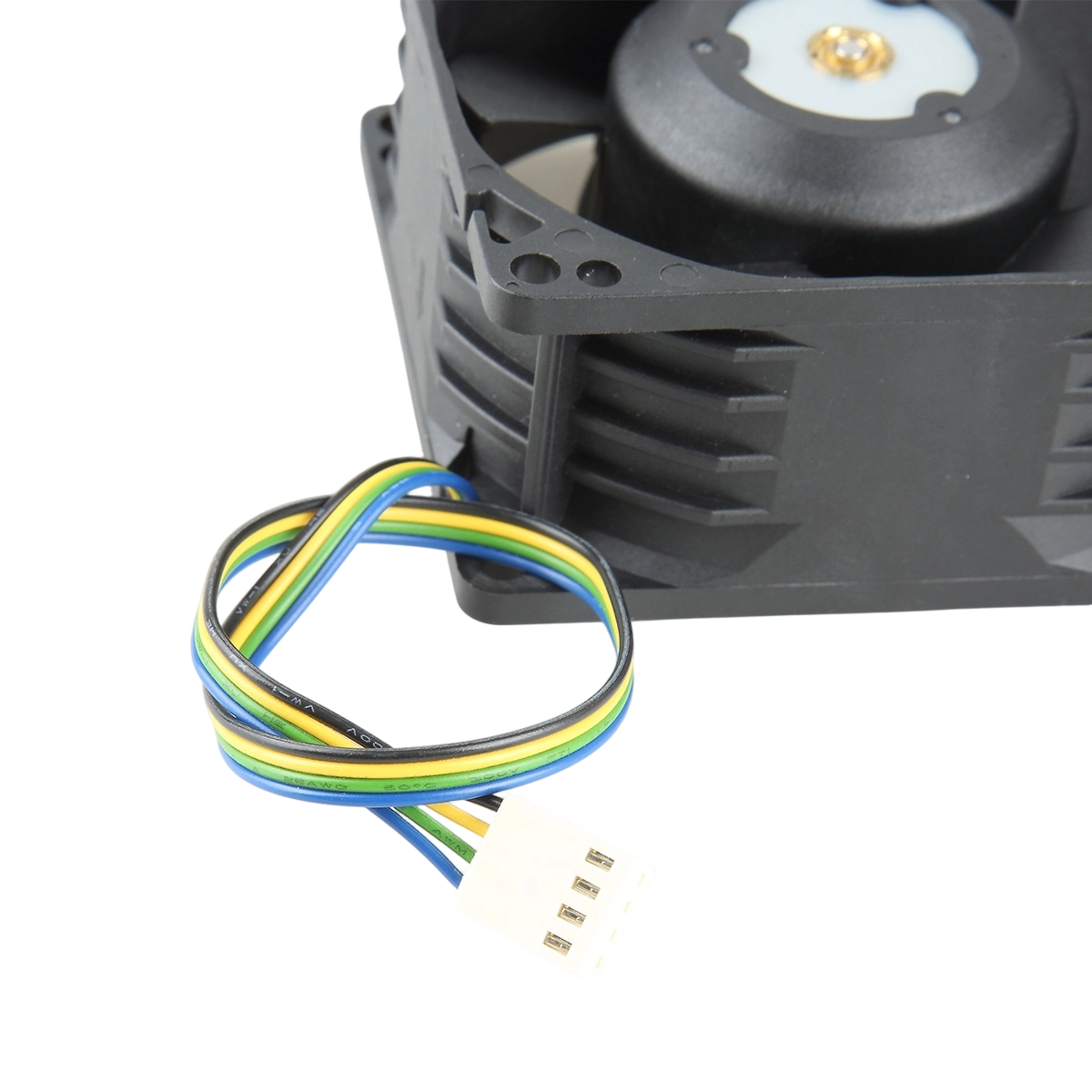

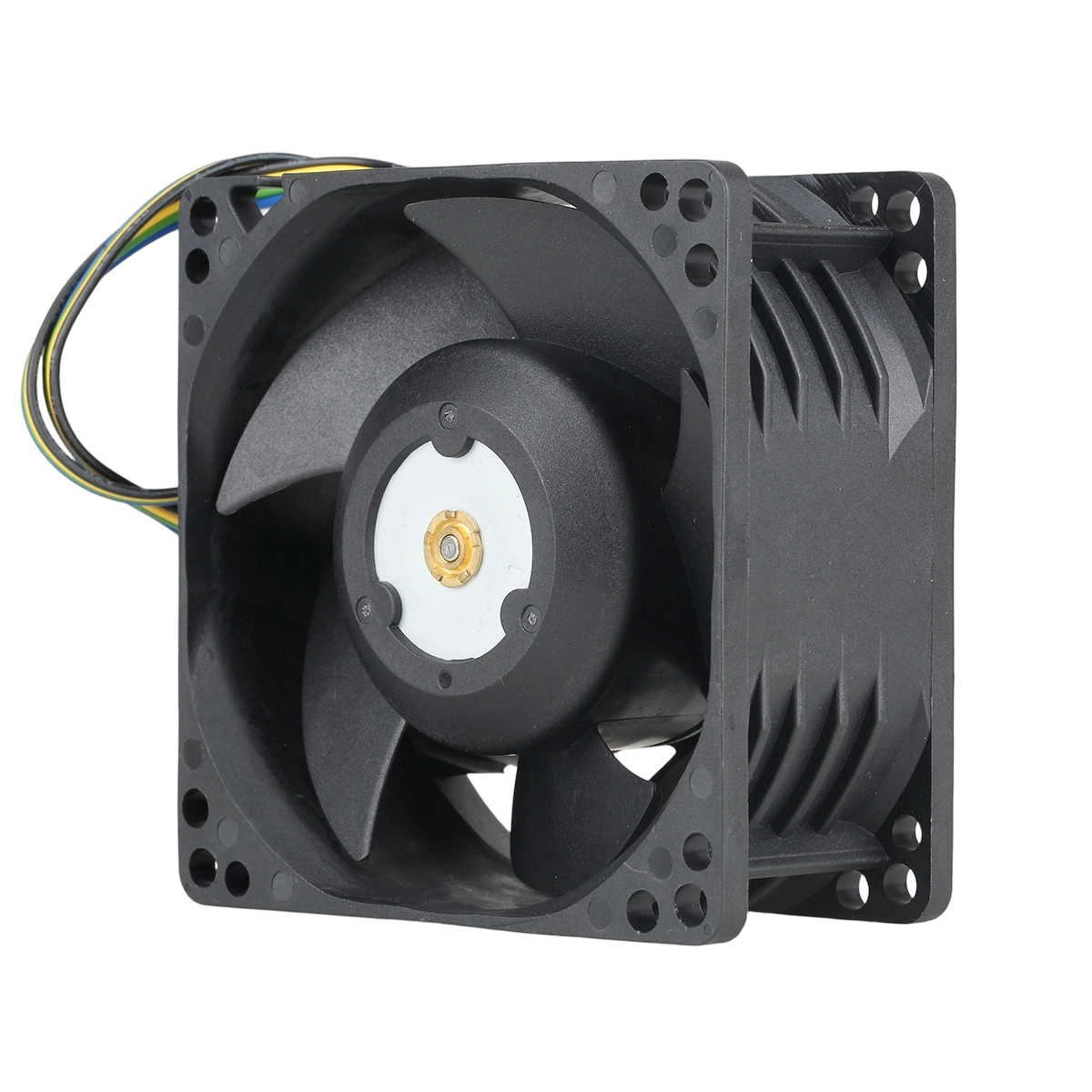

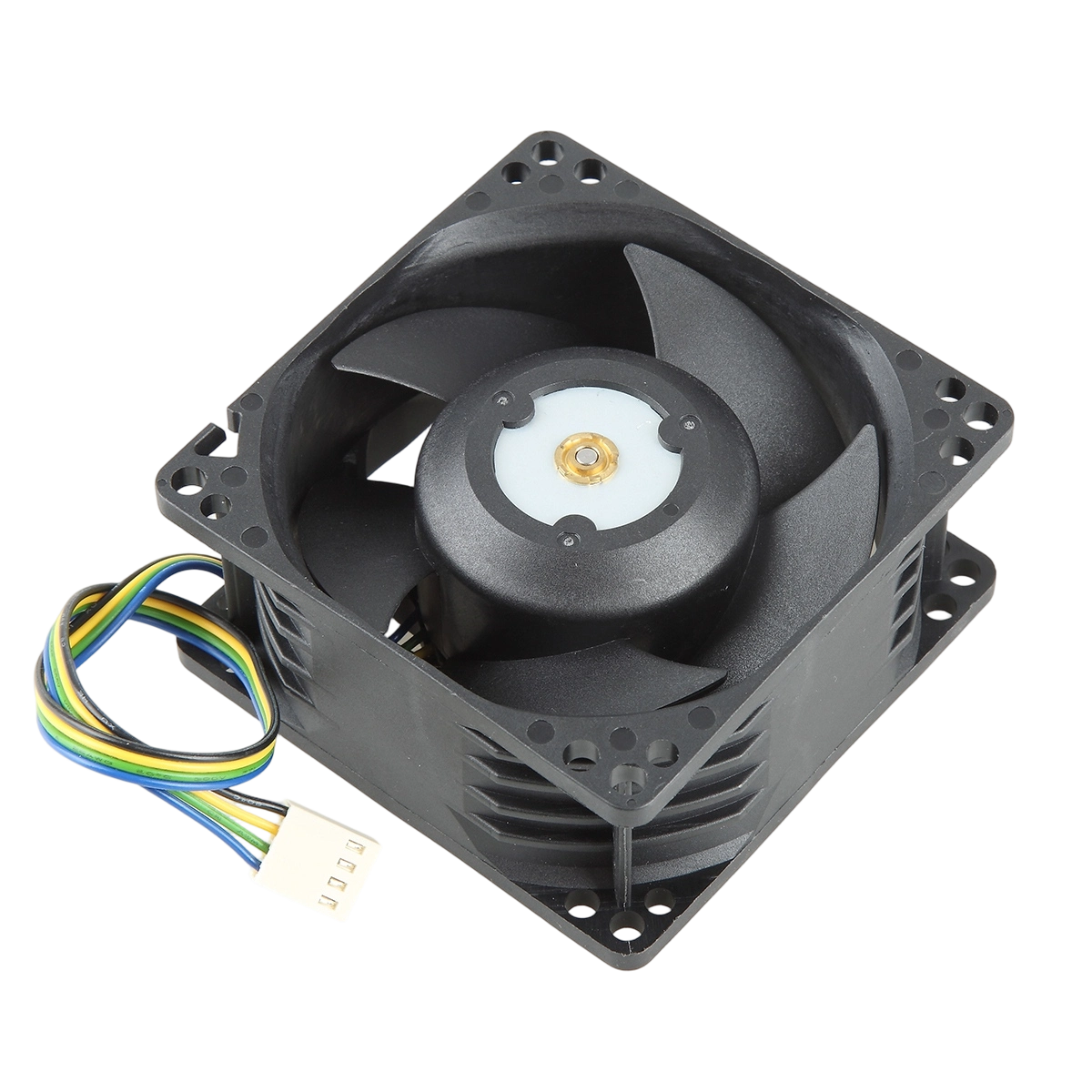

图片展示
型号
| Model | Rated Voltage (V) | Operating Voltage Range(V) | Rated Current (Amp) | Rated Input Power(W) | Rated Speed (rpm) | Air Flow | Static Pressure (mmH2O) | Sound level dB(A) | |
|---|---|---|---|---|---|---|---|---|---|
| (CFM) | m3/min | ||||||||
| XHA080381BM | 12 | 7~13.2 | 0.55 | 6.6 | 6000 | 52.18 | 1.48 | 15.91 | 44.5 |
| XHA080381BM | 12 | 7~13.2 | 0.96 | 11.52 | 9000 | 76.89 | 2.18 | 30.23 | 55.50 |
| XHA080381BV | 12 | 7~13.2 | 1.47 | 17.64 | 12000 | 99.70 | 2.82 | 49.75 | 61.80 |
| XHA080381BV | 12 | 7~13.2 | 2.85 | 34.20 | 15000 | 124.53 | 3.53 | 73.84 | 69.00 |
| XHA080381BU | 12 | 7~13.2 | 4.67 | 56.04 | 18000 | 153.00 | 4.33 | 113.62 | 79.00 |
| XHA080384BM | 48 | 28~56 | 0.13 | 6.24 | 8000 | 67.40 | 1.91 | 32.54 | 52.50 |
| XHA080384BH | 48 | 28~56 | 0.34 | 16.32 | 12000 | 100.70 | 2.85 | 59.72 | 61.80 |
| XHA080384BV | 48 | 28~56 | 0.66 | 31.68 | 15000 | 122.49 | 3.47 | 91.68 | 69.00 |
| XHA080384BU | 48 | 28~56 | 0.94 | 45.12 | 17000 | 144.22 | 4.09 | 103.18 | 70.00 |
NOTES:"X"="B"
*Sound level measured at the distance of one meter from the axis of intake.
*Specifications are subject change without notice.
