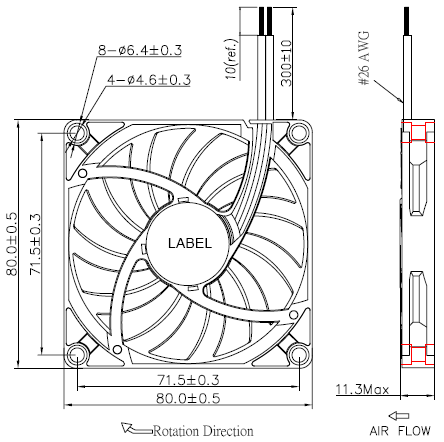

Series:80×80×10MM
-
Material:Housing Plastic (UL: 94V-0)
Impeller Plastlc (UL: 94V-0)
-
Bearing Type:Two ball bearing EBR
-
Protection:Auto-Restart /Impedance
-
Rated Voltage:12V
-
Operating Temp:~10~70℃
-
Weight:32g
8010
基本信息
图片展示
型号

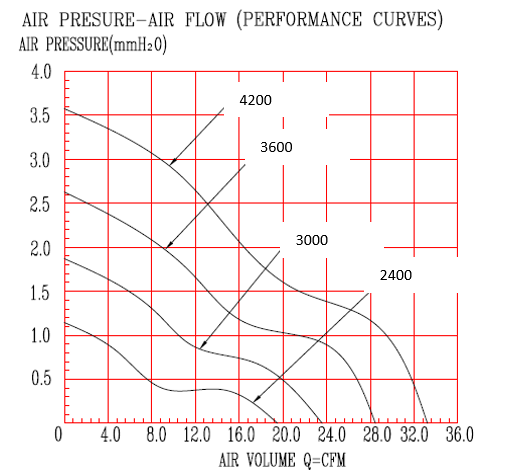

| Model | Rated Voltage (V) | Operating Voltage Range(V) | Rated Current (Amp) | Rated Input Power(W) | Rated Speed (rpm) | Air Flow | Static Pressure (mmH2O) | Sound level dB(A) | |
|---|---|---|---|---|---|---|---|---|---|
| (CFM) | m3/min | ||||||||
| XHA080101BL | 12 | 7~13.2 | 0.15 | 1.8 | 2400 | 19.12 | 0.54 | 1.17 | 24 |
| XHA080101BL | 12 | 7~13.2 | 0.20 | 2.40 | 3000 | 23.90 | 0.68 | 1.83 | 27.7 |
| XHA080101BL | 12 | 7~13.2 | 0.25 | 3.00 | 3600 | 28.68 | 0.81 | 2.63 | 31.8 |
| XHA080101BL | 12 | 7~13.2 | 0.35 | 4.20 | 4200 | 33.46 | 0.95 | 3.58 | 36.5 |
NOTES:"X"="B"
*Sound level measured at the distance of one meter from the axis of intake.
*Specifications are subject change without notice.
