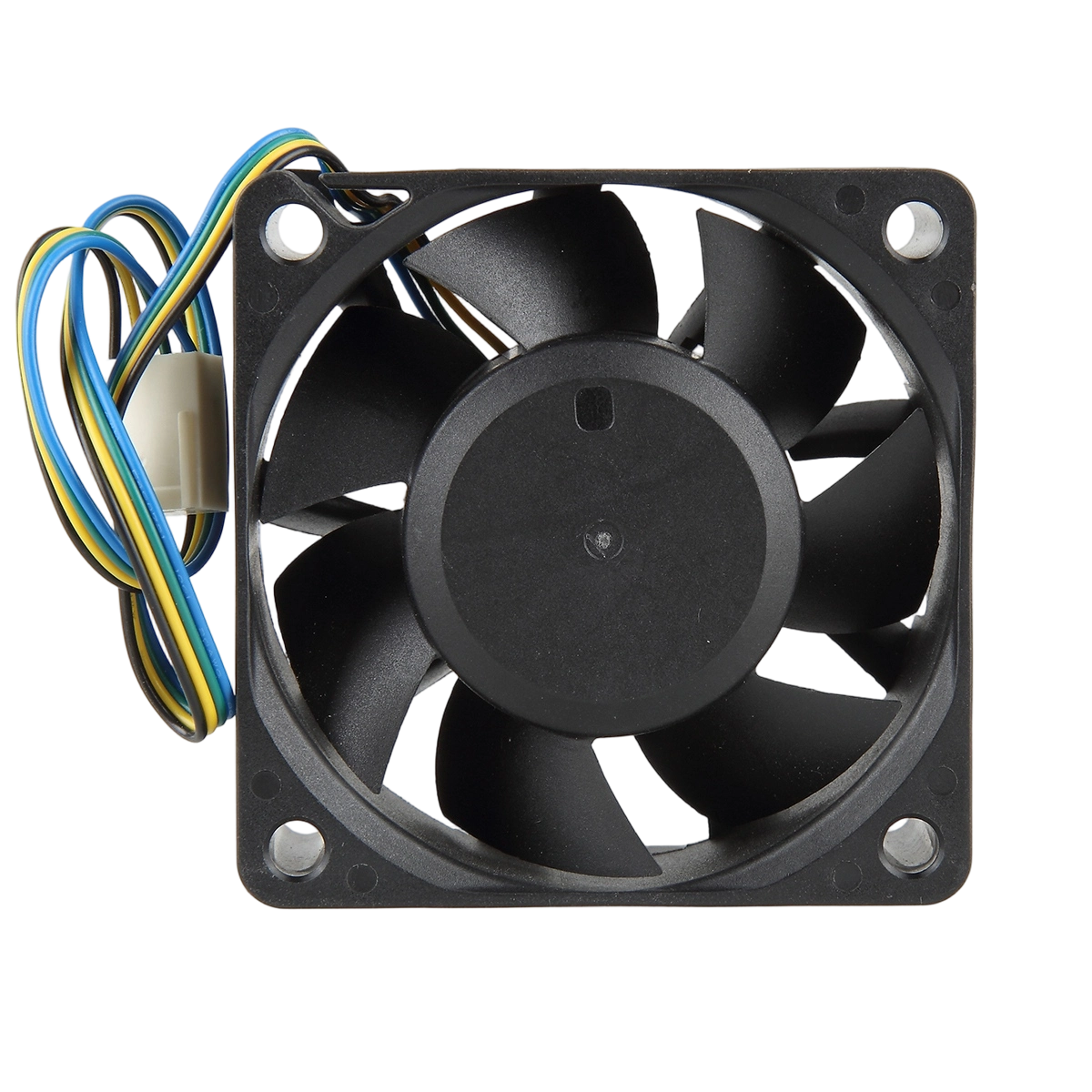

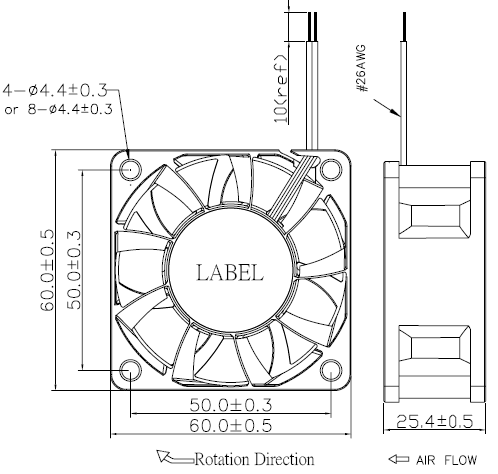

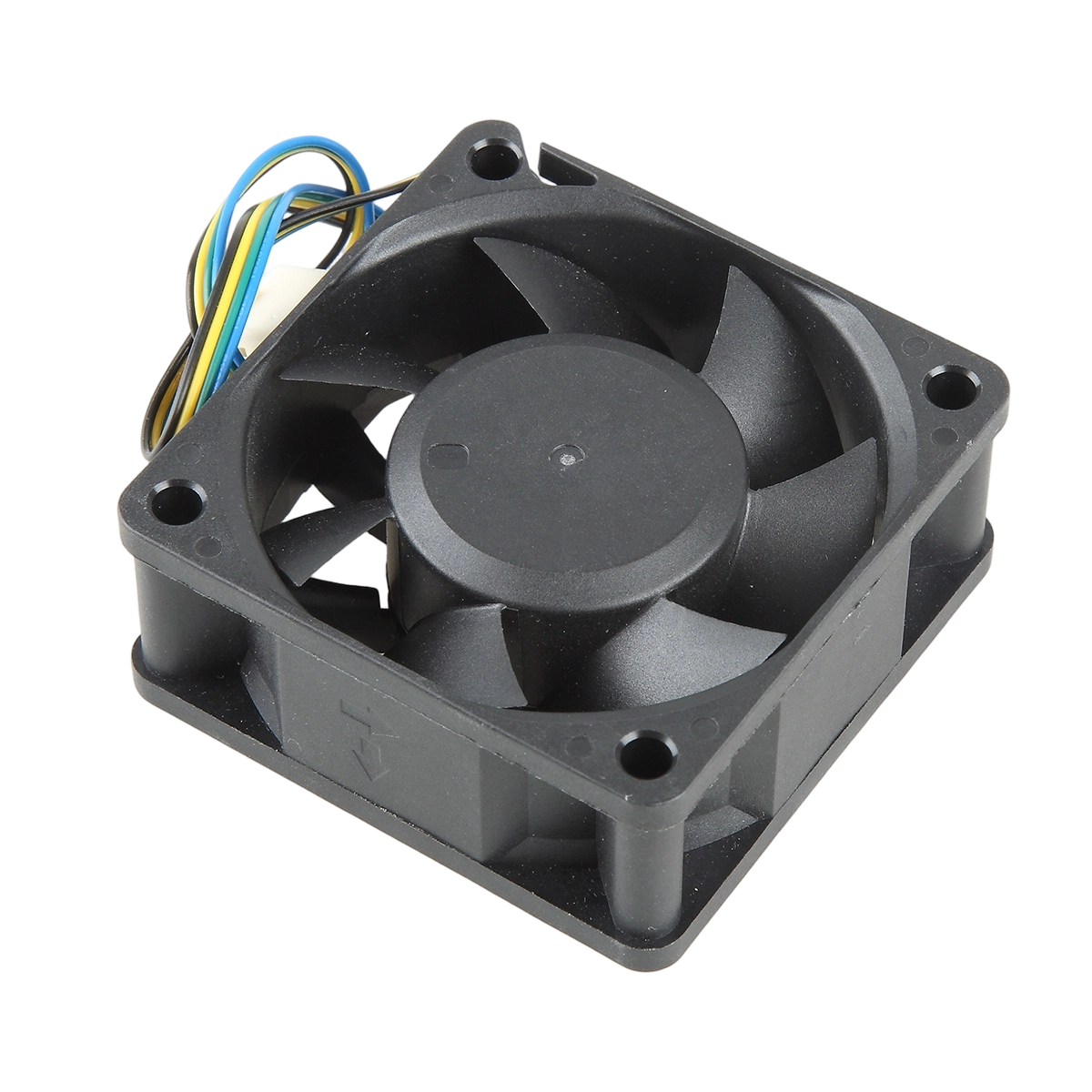

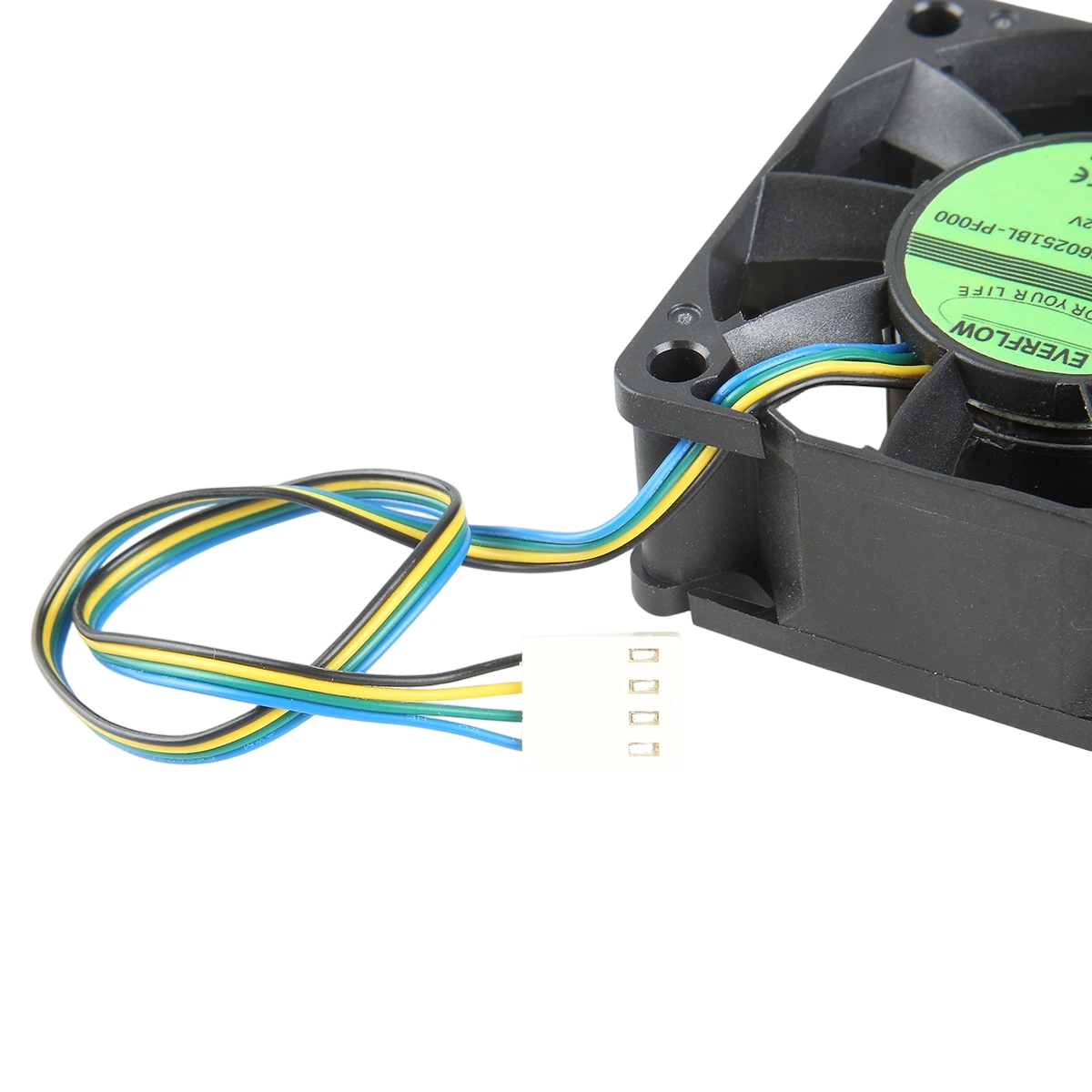

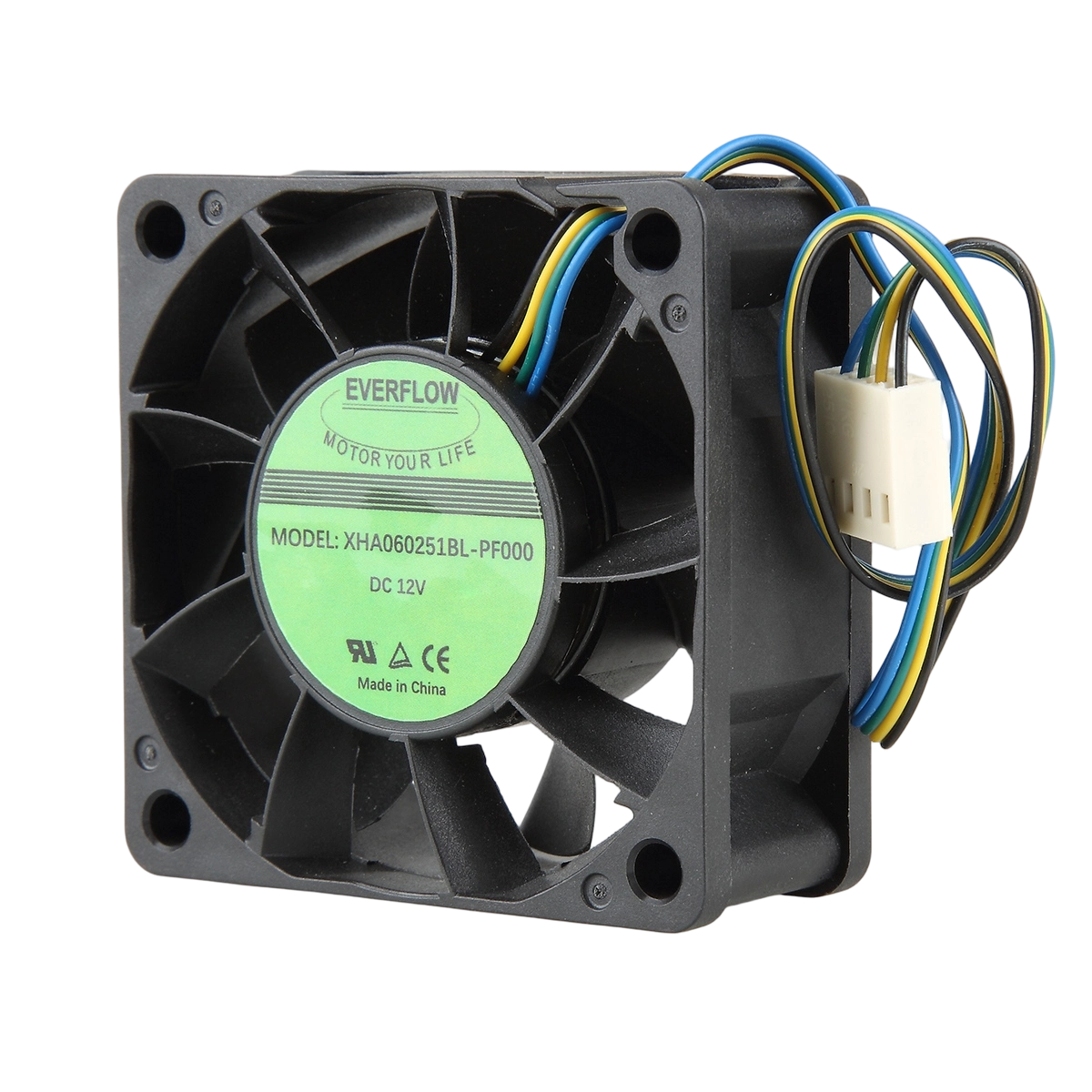

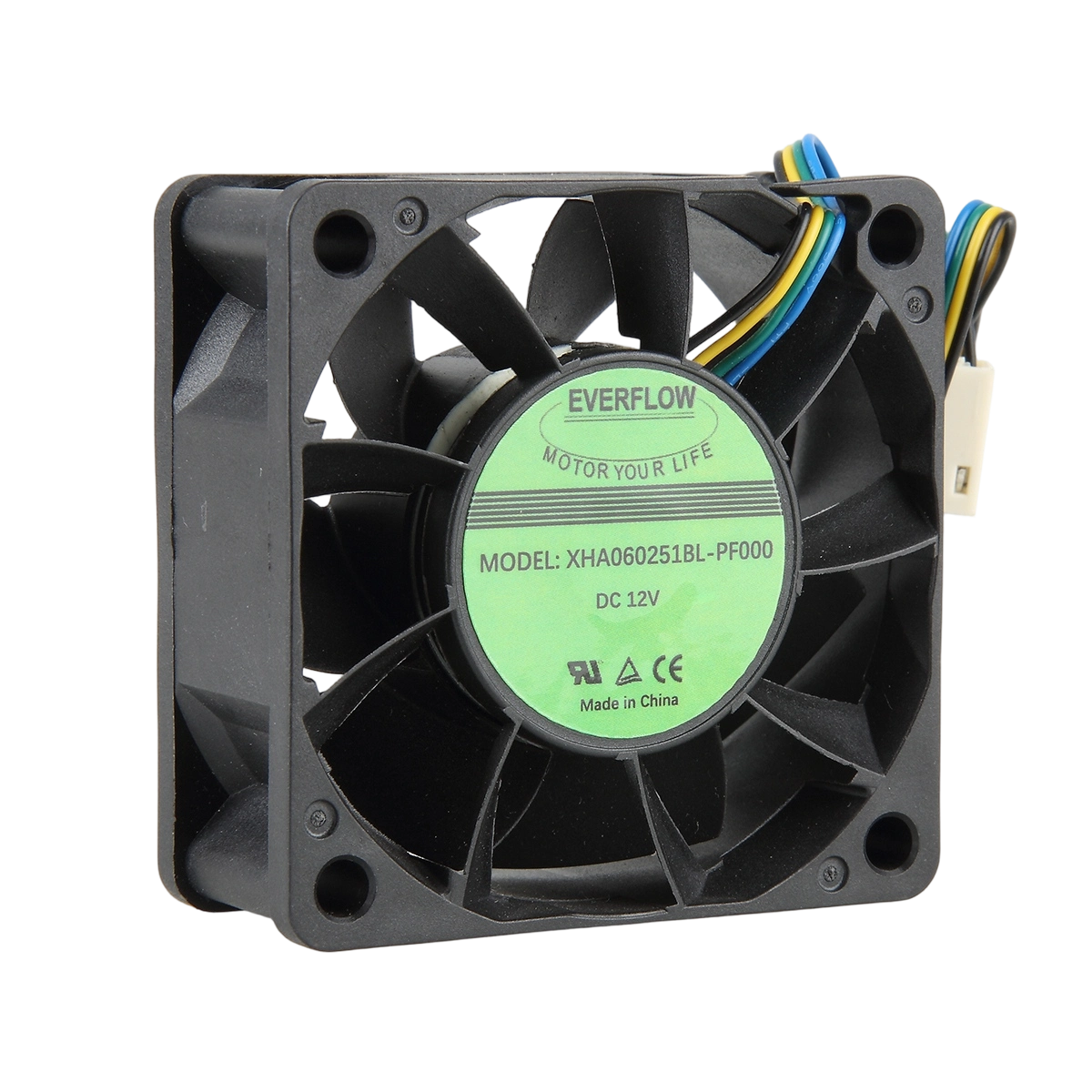

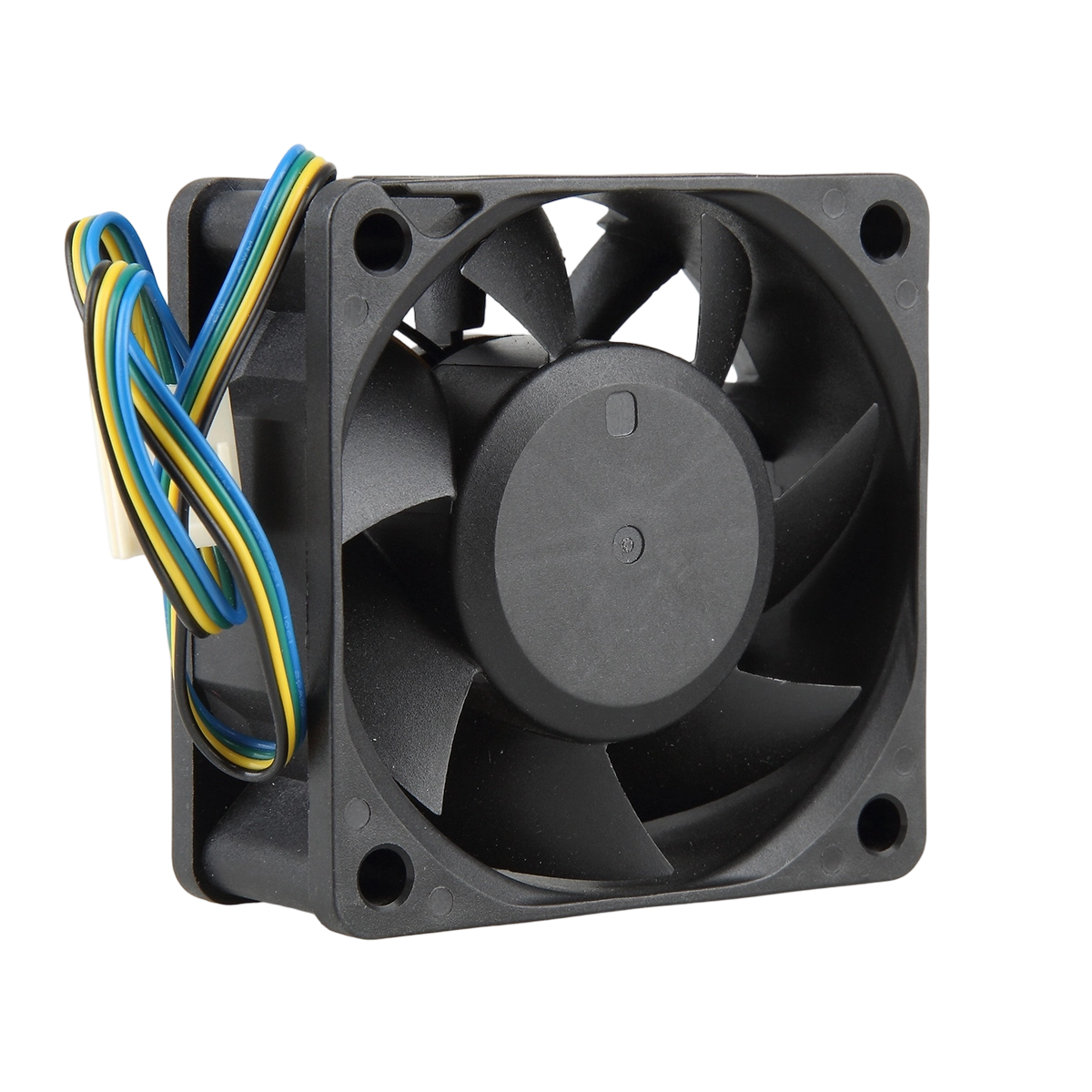

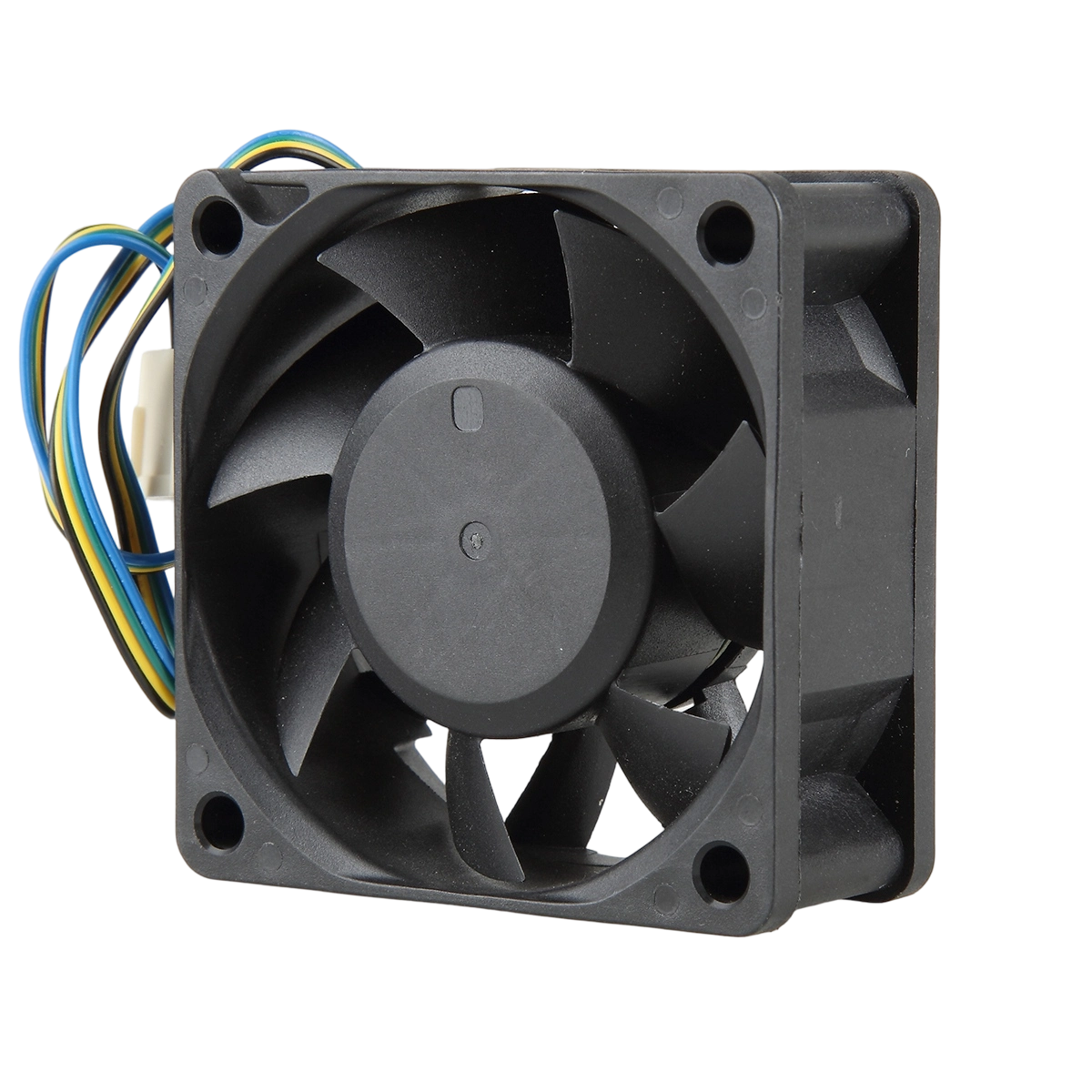

Series:60×60×25MM
-
Material:Housing Plastic (UL: 94V-0)
Impeller Plastlc (UL: 94V-0)
-
Bearing Type:Two ball bearing
-
Protection:Auto-Restart /Impedance
-
Rated Voltage:12V
-
Operating Temp:~10~70℃
-
Weight:79g
6025
基本信息
图片展示
型号
| Model | Rated Voltage (V) | Operating Voltage Range(V) | Rated Current (Amp) | Rated Input Power(W) | Rated Speed (rpm) | Air Flow | Static Pressure (mmH2O) | Sound level dB(A) | |
|---|---|---|---|---|---|---|---|---|---|
| (CFM) | m3/min | ||||||||
| XHA060251BL | 12 | 7~13.2 | 0.09 | 1.08 | 4000 | 19.95 | 0.57 | 4.45 | 34.2 |
| XHA060251BL | 12 | 7~13.2 | 0.21 | 2.52 | 6000 | 31.21 | 0.88 | 9.55 | 43.5 |
| XHA060251BL | 12 | 7~13.2 | 0.41 | 4.92 | 8000 | 41.59 | 1.18 | 16.52 | 51.5 |
| XHA060251BL | 12 | 7~13.2 | 0.95 | 11.40 | 11000 | 58.55 | 1.66 | 31.56 | 59.2 |
NOTES:"X"="B"
*Sound level measured at the distance of one meter from the axis of intake.
*Specifications are subject change without notice.
