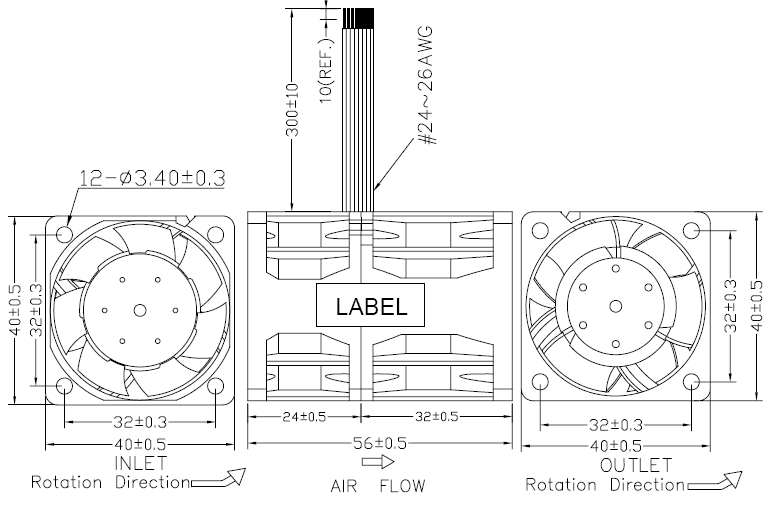

Series:40×40×56MM
-
Material:Housing Plastic (UL: 94V-0)
Impeller Plastlc (UL: 94V-0)
-
Bearing Type:Two ball bearing
-
Protection:Auto-Restart
-
Rated Voltage:12V
-
Operating Temp:~10~70℃
-
Weight:110g
4056对旋
基本信息
图片展示
型号

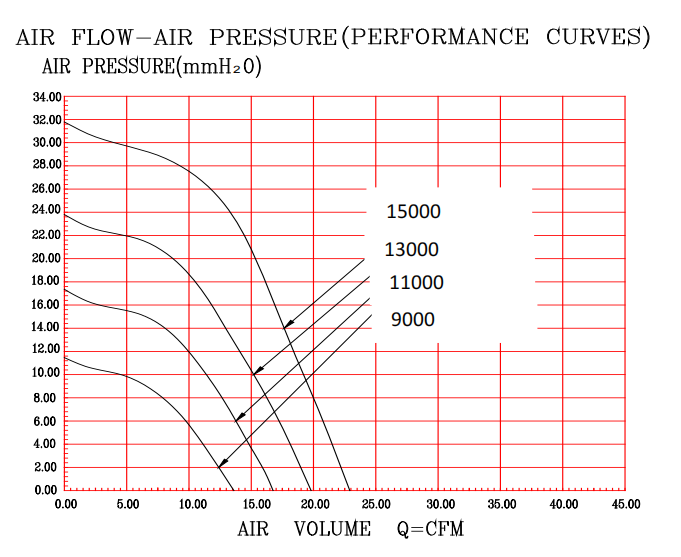

| Model | Rated Voltage (V) | Operating Voltage Range(V) | Rated Current (Amp) | Rated Input Power(W) | Rated Speed (rpm) | Air Flow | Static Pressure (mmH2O) | Sound level dB(A) | |
|---|---|---|---|---|---|---|---|---|---|
| (CFM) | m3/min | ||||||||
| XHD040561BV | 12 | 7~13.2 | 0.60 | 7.2 | 9000 | 13.79 | 0.39 | 11.48 | 48.8 |
| XHD040561BV | 12 | 7~13.2 | 0.90 | 10.8 | 11000 | 16.86 | 0.48 | 17.15 | 52.3 |
| XHD040561BV | 12 | 7~13.2 | 1.20 | 14.4 | 13000 | 19.92 | 0.56 | 23.96 | 56.5 |
| XHD040561BV | 12 | 7~13.2 | 1.50 | 18 | 15000 | 22.99 | 0.65 | 31.90 | 57.7 |
NOTES:"X"="B"
*Sound level measured at the distance of one meter from the axis of intake.
*Specifications are subject change without notice.
