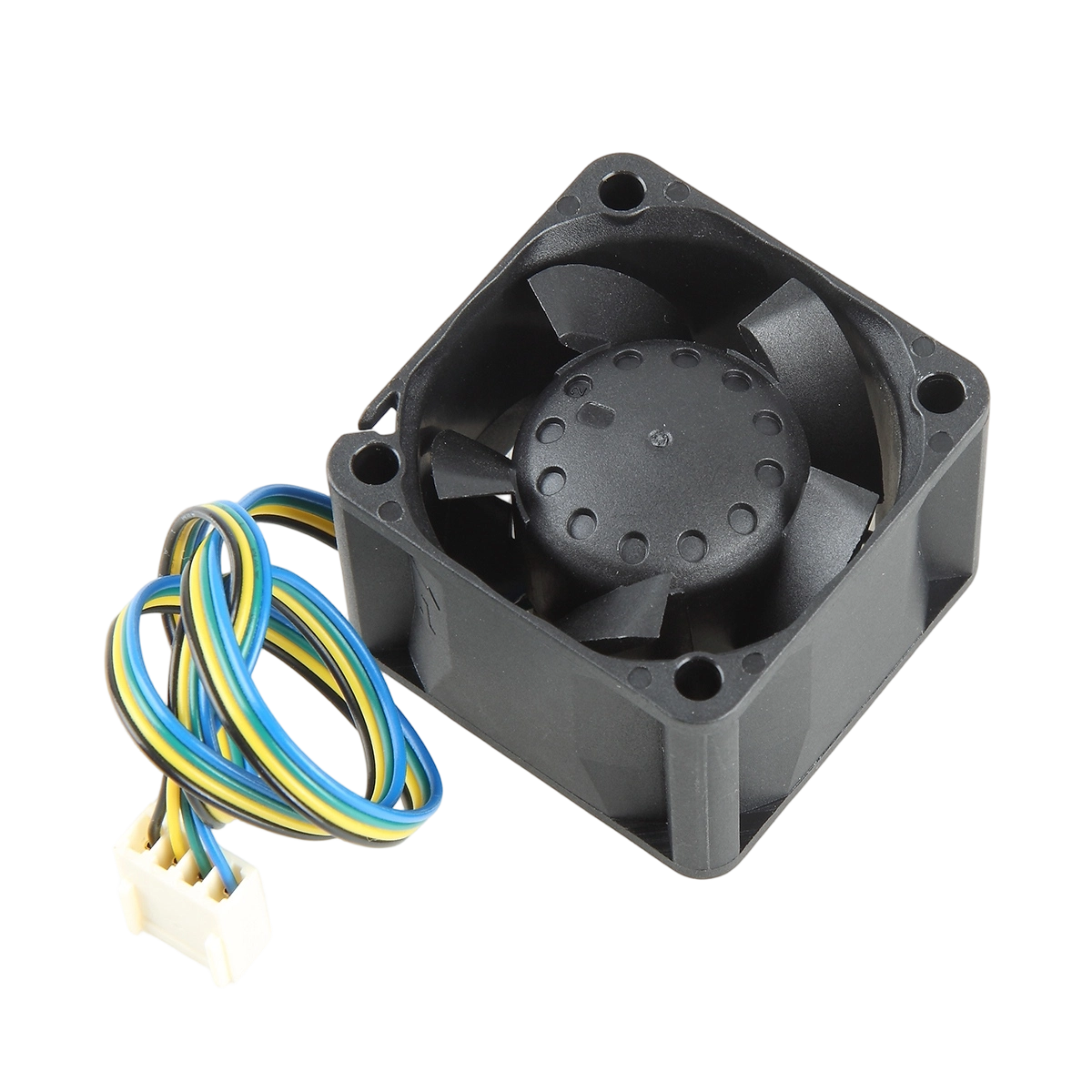

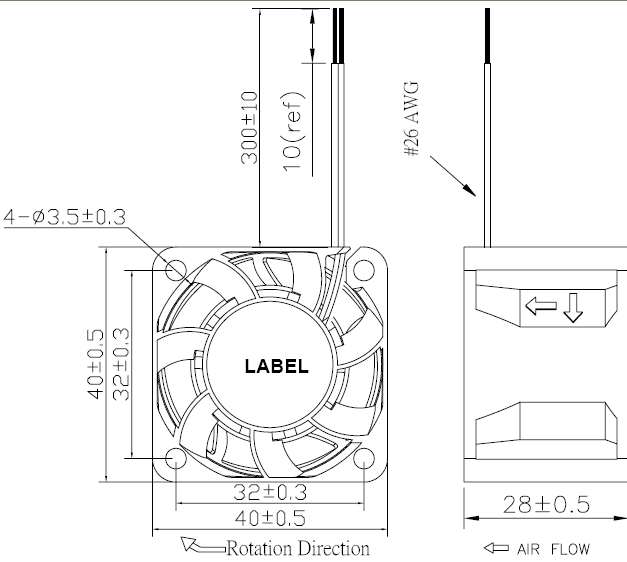

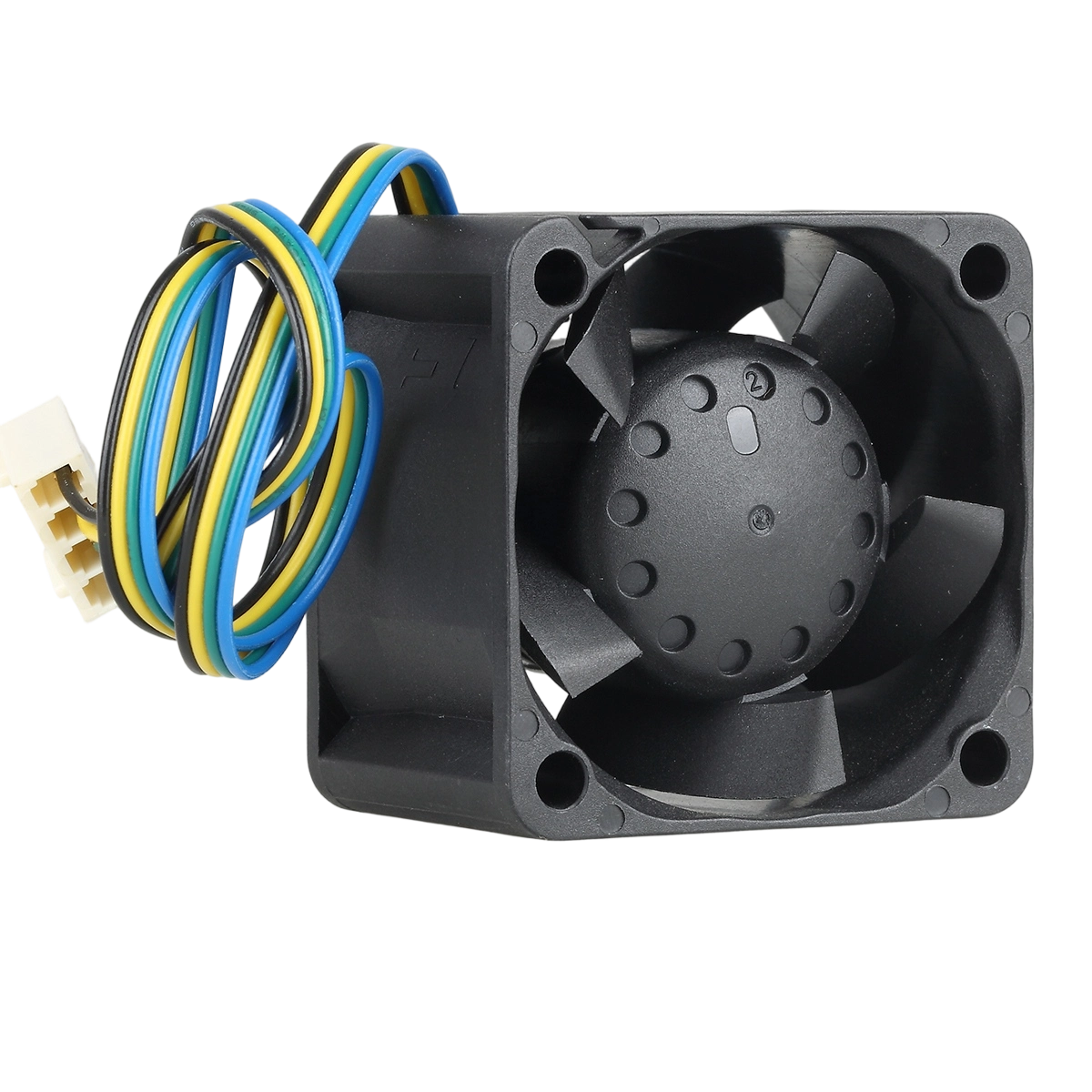

Series:40×40×28MM
-
Material:Housing Plastic (UL: 94V-0)
Impeller Plastlc (UL: 94V-0)
-
Bearing Type:Two ball bearing
-
Protection:Auto-Restart /Impedance
-
Rated Voltage:12V
-
Operating Temp:~10~70℃
-
Weight:56.30g
4028
基本信息
图片展示
型号

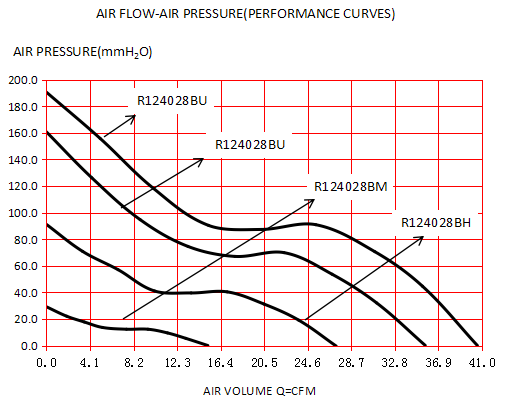

| Model | Rated Voltage (V) | Operating Voltage Range(V) | Rated Current (Amp) | Rated Input Power(W) | Rated Speed (rpm) | Air Flow | Static Pressure (mmH2O) | Sound level dB(A) | |
|---|---|---|---|---|---|---|---|---|---|
| (CFM) | m3/min | ||||||||

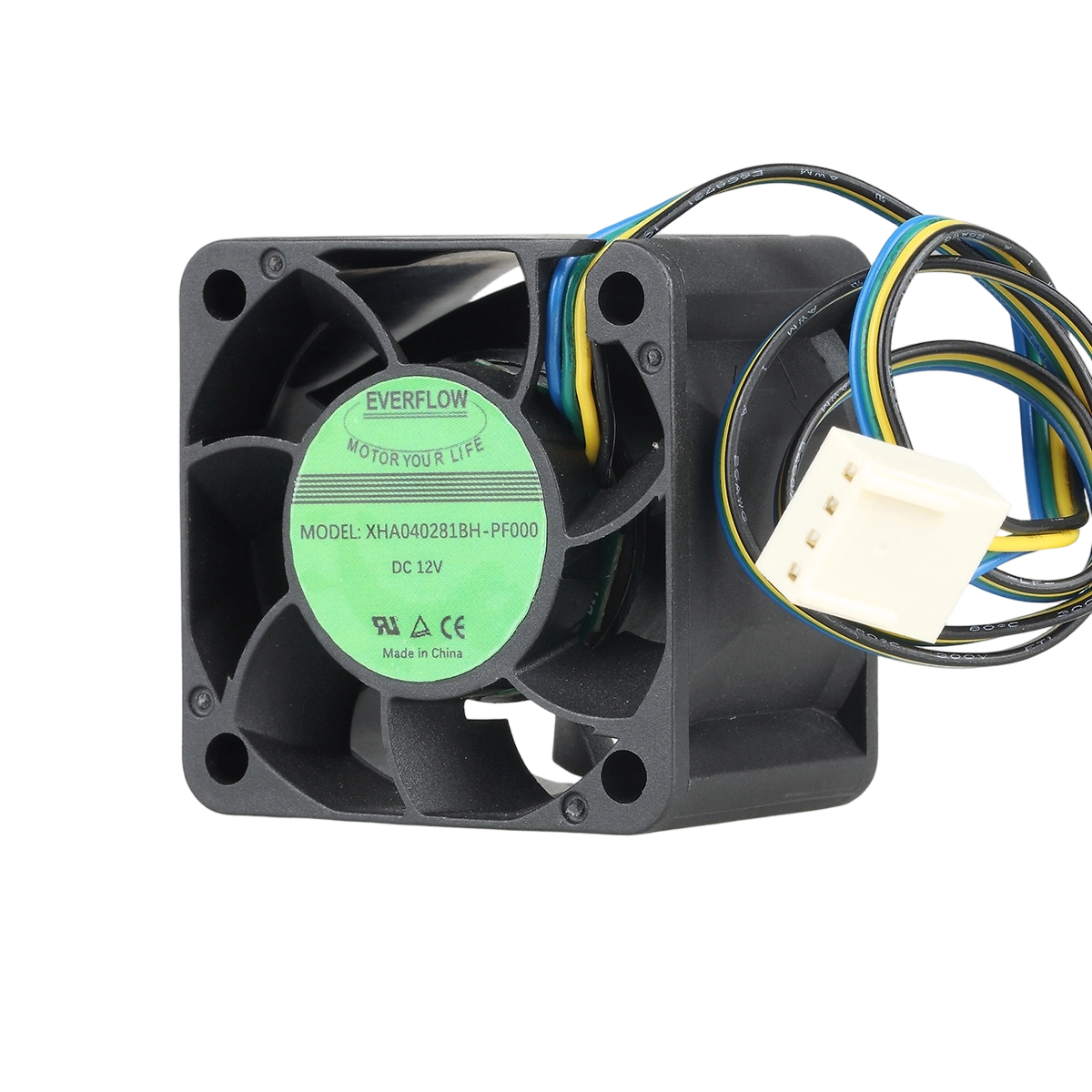

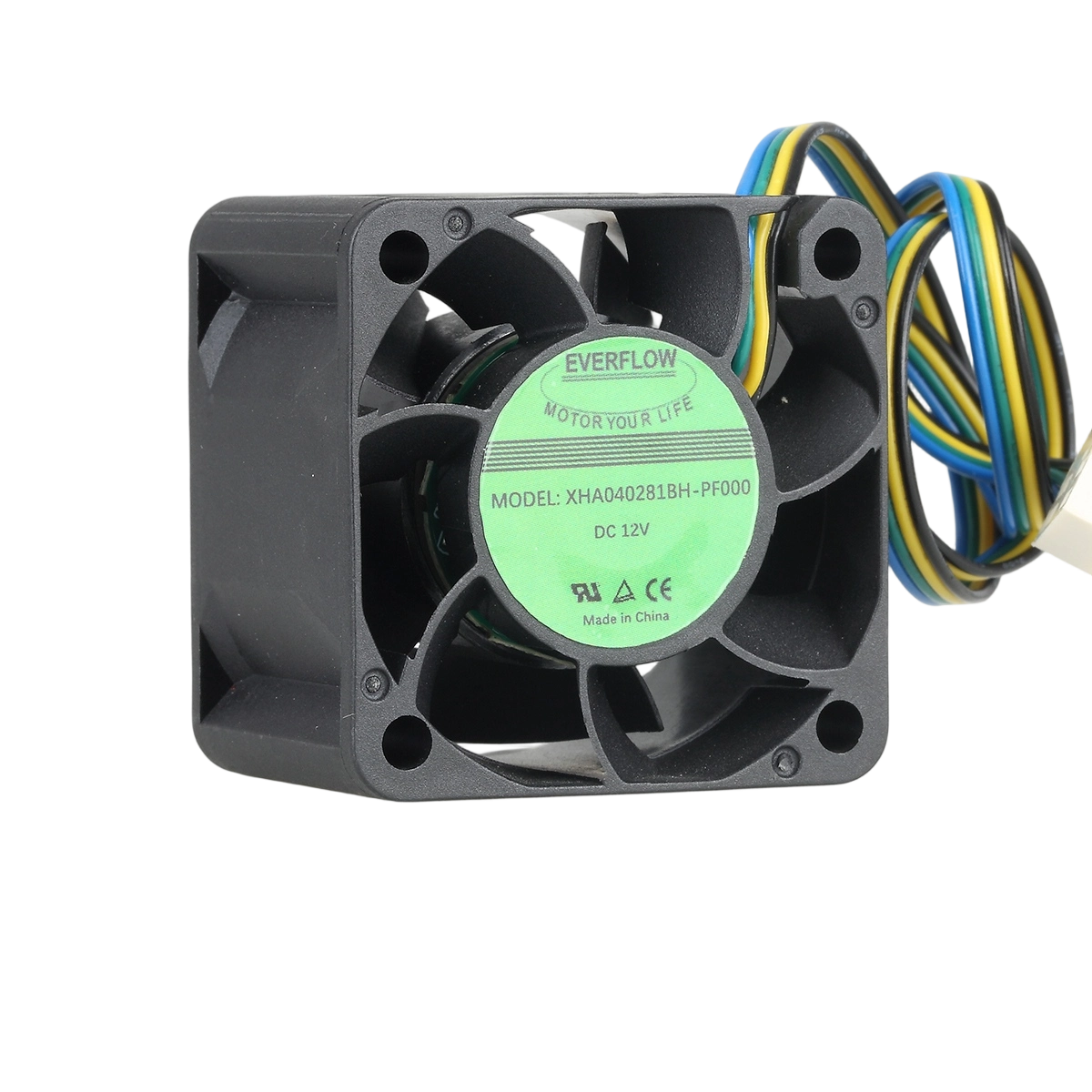

| XHA040281BH | 12 | 7~13.2 | 1.06 | 12.72 | 23000 | 27.27 | 0.77 | 91.10 | 61.1 |
| XHA040281BH | 12 | 7~13.2 | 0.21 | 2.52 | 13000 | 15.19 | 0.43 | 29.17 | 45.5 |
| XHA040281BH | 12 | 7~13.2 | 0.86 | 10.32 | 23000 | 27.27 | 0.77 | 91.10 | 61.1 |
| XHA040281BH | 12 | 7~13.2 | 1.86 | 22.32 | 3000 | 35.66 | 1.01 | 160.65 | 70 |
NOTES:"X"="B"
*Sound level measured at the distance of one meter from the axis of intake.
*Specifications are subject change without notice.
