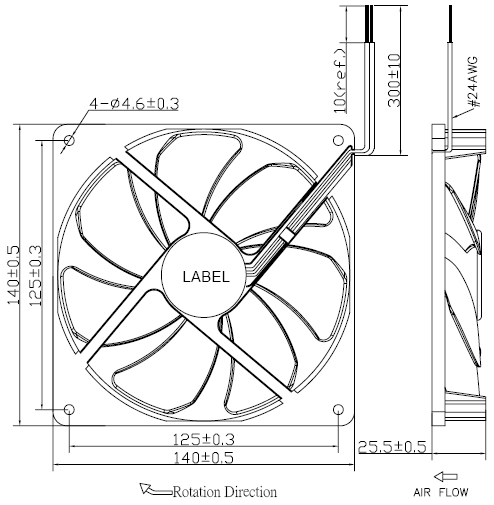

Series:140×140×25MM
-
Material:Housing Plastic (UL: 94V-0)
Impeller Plastlc (UL: 94V-0)
-
Bearing Type:Two ball bearing
-
Protection:Auto-Restart/Impedance
-
Rated Voltage:12V
-
Operating Temp:~10~70℃
-
Weight:147g
14025
基本信息
图片展示
型号

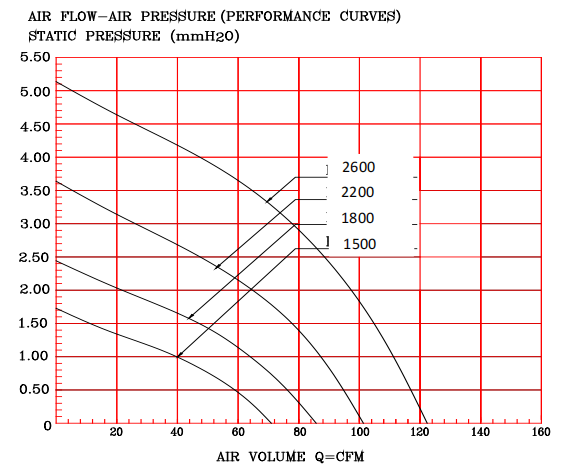

| Model | Rated Voltage (V) | Operating Voltage Range(V) | Rated Current (Amp) | Rated Input Power(W) | Rated Speed (rpm) | Air Flow | Static Pressure (mmH2O) | Sound level dB(A) | |
|---|---|---|---|---|---|---|---|---|---|
| (CFM) | m3/min | ||||||||
| XHA140251BL | 12 | 7~13.2 | 0.20 | 2.40 | 1500 | 70.94 | 2.01 | 1.71 | 26.5 |
| XHA140251BL | 12 | 7~13.2 | 0.35 | 4.20 | 1800 | 85.13 | 2.41 | 2.46 | 33.1 |
| XHA140251BL | 12 | 7~13.2 | 0.60 | 7.20 | 2200 | 104.05 | 2.95 | 3.68 | 39.2 |
| XHA140251BL | 12 | 7~13.2 | 1.10 | 13.20 | 2600 | 122.97 | 3.48 | 5.14 | 43.3 |
NOTES:"X"="B"
*Sound level measured at the distance of one meter from the axis of intake.
*Specifications are subject change without notice.
