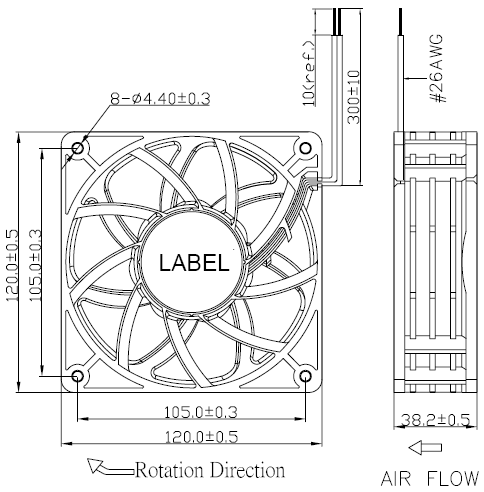

Series:120×120×38MM
-
Material:Housing Plastic (UL: 94V-0)
Impeller Plastlc (UL: 94V-0)
-
Bearing Type:Two ball bearing
-
Protection:Auto-Restart
-
Rated Voltage:12V/24V
-
Operating Temp:~10~70℃
-
Weight:325g
轴流风扇 12038-A 系列
基本信息
图片展示
型号
| Model | Rated Voltage (V) | Operating Voltage Range(V) | Rated Current (Amp) | Rated Input Power(W) | Rated Speed (rpm) | Air Flow | Static Pressure (mmH2O) | Sound level dB(A) | |
|---|---|---|---|---|---|---|---|---|---|
| (CFM) | m3/min | ||||||||
| XHA120381BL | 12 | 7~12.6 | 0.41 | 4.92 | 3000 | 107.81 | 3.05 | 7.04 | 44.0 |
| XHA120381BM | 12 | 7~12.6 | 1.3 | 15.60 | 5000 | 180.61 | 5.12 | 17.4 | 58.0 |
| XHA120382BL | 24 | 12~26.4 | 0.4 | 9.60 | 4000 | 139.76 | 3.96 | 11.35 | 53.5 |
| XHA120382BM | 24 | 12~26.4 | 0.68 | 16.62 | 5000 | 180.61 | 5.12 | 17.40 | 58.0 |
NOTES:"X"="B"
*Sound level measured at the distance of one meter from the axis of intake.
*Specifications are subject change without notice.
